PCR Plates

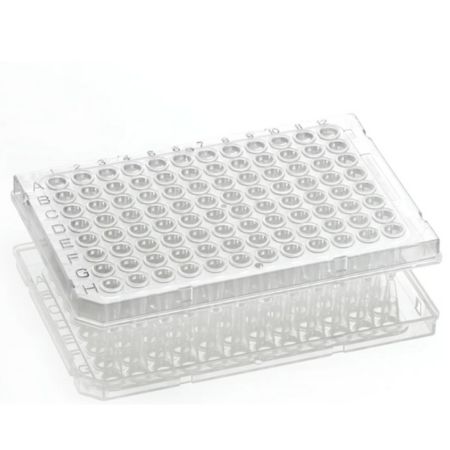

FrameStarĀ® 96 Well Semi-Skirted PCR Plate - Clear Frame

Standard profile, 0.2ml polypropylene wells, polycarbonate frame, cut corner H1, working volume: <200µl, total well capacity: 300µl; universal semi-skirted plate designed for use on standard thermal cyclers.



  • The rigid FrameStar® 2-component design eliminates warping and distortion during PCR, making it ideal for use with robotic systems
  • The semi-skirted allows for labeling or barcoding for sample tracking

Features

  • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
  • Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
  • <0.2ml (200µl) working volume, 0.3ml (300µl) total well capacity

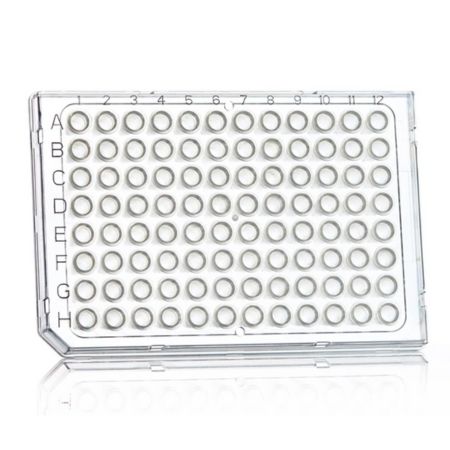

  • Cut corner at H1
  • Improved seal integrity due to thermal stability of frame
  • Rigid polycarbonate frame for added mechanical stability

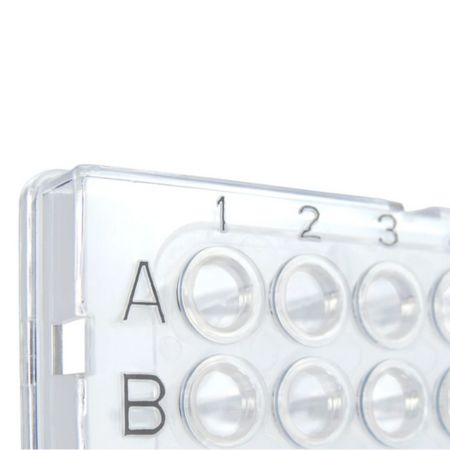

  • Alphanumeric grid reference to aid well and sample identification
  • Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results
  • Recommended for low volume PCR
  • Ideal for use with robotic systems
  • Compatible with standard multichannel pipettes
  • Also available with white wells for optimum signal-to-noise ratio when using fluorescent based assays
  • Similar plate with a cut corner at A12 for use with ABI® thermal cyclers and sequencers available
  • Available barcoded upon request





Parameter FrameStar® 96 Well Semi-Skirted PCR Plate
Plate length 127.76 ± 0.25mm
Plate width 85.48 ± 0.25mm
Plate height 20.70 ± 0.25mm
Well depth 20.20 ± 0.10mm
Well diameter 5.46 ± 0.10mm
Total well capacity 0.3ml (300µl)
Working volume <0.2ml (200µl)
Distance to center of A1 from top edge 11.24 ± 0.25mm
Distance to center of A1 from left edge 14.38 ± 0.25mm
Pitch (distance between A1 and A2) 9.00mm
