PCR Plates

FrameStar® 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style (Various Colours)

Standard profile, 0.2ml polypropylene wells, polycarbonate frame with upstand, cut corner A12, working volume: <200µl, total well capacity: 300µl; designed for use on ABI® instruments.

  • This ABI® Style PCR plate offers the benefits of our 2-component design to ABI® standard block users
  • This design combines the advantages of ultra-thin wall polypropylene tubes for optimum PCR results with a rigid polycarbonate skirt and deck for the highest thermal stability
  • We recommend this semi-skirted plate for use with ABI® thermal cyclers and sequencers; it can be used directly with ABI® instruments with no adapters necessary
  • The only case where this is not true is with the ABI Fast Block thermal cyclers; in this case, using our FrameStar® Fast Plate is recommended instead

Features

Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen

Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time quantitative PCR (RT-qPCR) results

<0.2ml (200µl) working volume, 0.3ml (300µl) total well capacity

Improved seal integrity due to thermal stability of frame

Rigid polycarbonate frame for added mechanical stability

Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results

Alphanumeric grid reference to aid well and sample identification

Ideal for use with ABI® thermal cyclers & sequencers

Compatible with standard multichannel pipettes

Recommended for low volume PCR

Ideal for use with robotic systems

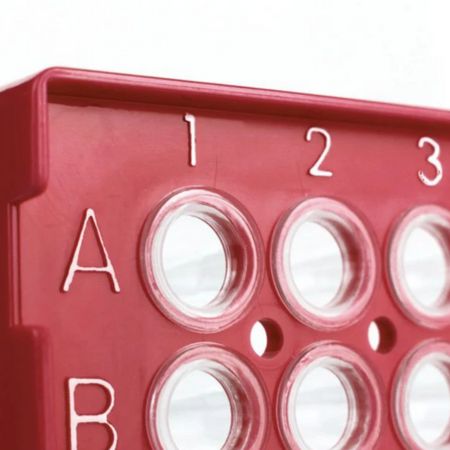

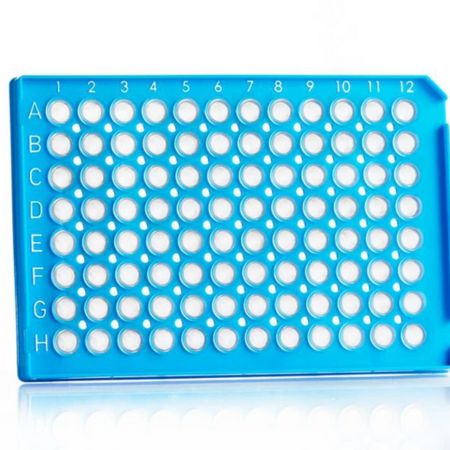

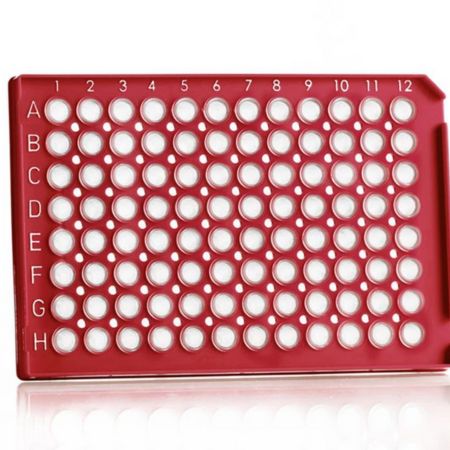

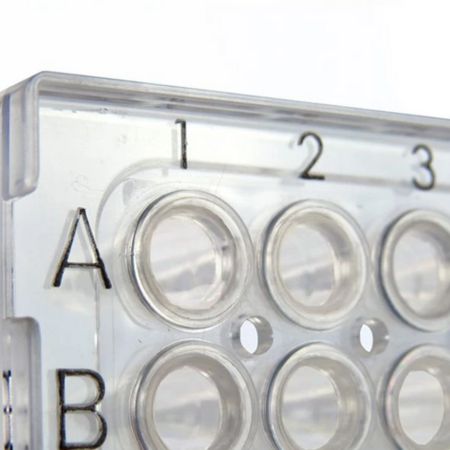

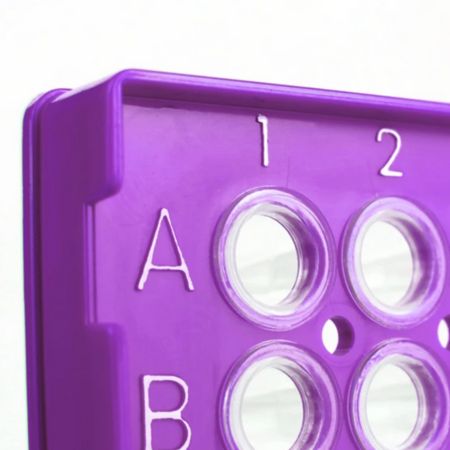

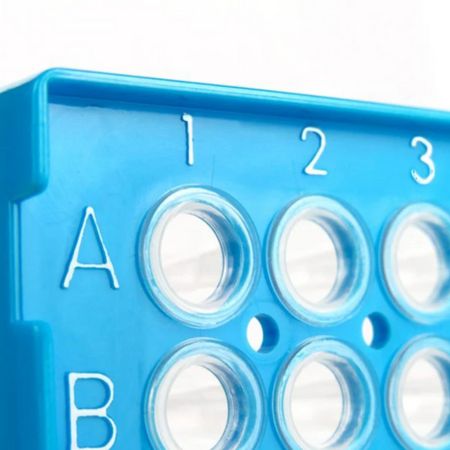

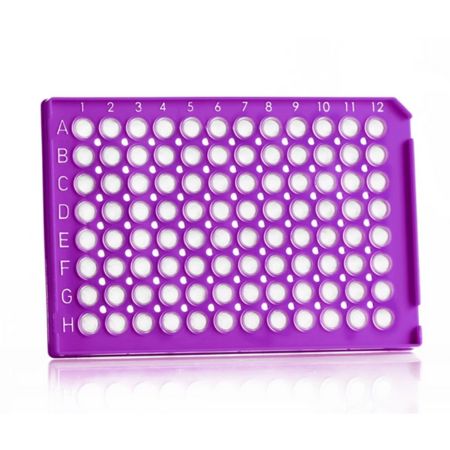

Available with the following frame color options for the clear well variety: purple, blue, clear, green, red, and black

Ethylene oxide treated option available for forensic use

Combi packs available (for 4ti-0730/C) with Q-Stick™ qPCR Seal

Available barcoded upon request??

Parameter FrameStar® 96 Well Semi-Skirted PCR Plate With Upstand, ABI® Style
Plate length 124.26 ± 0.25mm
Plate width 83.97 ± 0.25mm
Plate height 23.20 ± 0.25mm
Well depth 20.20 ± 0.10mm
Well diameter 5.46 ± 0.10mm
Total well capacity 0.3ml (300µl)
Working volume <0.2ml (200µl)
Distance to center of A1 from top edge 10.495 ± 0.25mm
Distance to center of A1 from left edge 12.63 ± 0.25mm
Pitch (distance between A1 and A2) 9.00mm
