Omega series

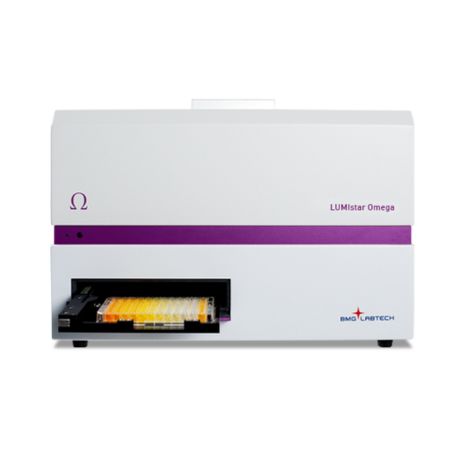

BMG Labtech LUMIstar Omega Absorbance Microplate Reader

LUMIstar Omega

Dedicated microplate luminometer

The LUMIstar® Omega is BMG LABTECH's powerful dedicated luminescence microplate reader, providing highly sensitive flash and glow assay readings. This DLReady-certified microplate reader can also come equipped with Simultaneous Dual Emission for BRET applications and can be further upgraded to a multi-mode reader.

The LUMIstar Omega is a dedicated luminescence plate reader for luminescence measurements, including BRET. It provides highly sensitive readings of all luminescence applications in end-point and kinetic assays. Moreover, a built-in filter wheel and the optional Simultaneous Dual Emission detection make multiple wavelength detection and BRET applications possible.

Features

  • Flash, glow and BRET assays
  • Measurements in up to 384-well plates
  • Top and bottom reading
  • Incubation up to 45 or 65 °C
  • Simultaneous Dual Emission
  • Well scanning with up to 900 data points per well
  • Injection at point of measurement
  • Easily integrated into automated systems



Detection Modes

Luminescence (flash and glow) - incl. BRET

Measurement Modes

Top and bottom reading
Endpoint and kinetic
Sequential multi emission
Simultaneous Dual Emission
Ratiometric measurements

Microplate Formats

6 to 384-well plates, user-definable

Microplate Carrier

Robot compatible

Detectors

Low noise photomultiplier tube

Wavelength Selection

Optical filters

Spectral Range

Filters
240 - 740 nm for LUM

Sensitivity

LUM
< 20 amol/well ATP

Read Times

16 s (96), 47 s (384)

Shaking

Linear, orbital, and double-orbital with user-definable time and speed

Purge Gas Vent

System to inject an atmosphere or to pull a vacuum into the reader

Incubation

+4 °C above ambient up to 45 °C or 65 °C

The upper heating plate of the incubation chamber operates at 0.5 °C more than the lower plate. This prevents condensation build-up on the lid or sealer

Software

Multi-user Reader Control and MARS Data Analysis Software included
FDA 21 CFR Part 11 compliant

Dimensions

Width: 44 cm, depth: 48 cm, height: 30 cm; weight: 28 kg

Optical Filters

Emission filter wheel for 8 filters

Optical Path Guides

Top: liquid-filled light guides
Bottom: fiber optics

Reagent Injection

Up to 2 built-in reagent injectors
Injection at measurement position (6 to 384-well)
Individual injection volumes for each well (3 to 500 µL)
Variable injection speed up to 420 µL/s
Up to four injection events per well
Reagent back flushing

Power Requirements
  • 100-240 V, 50/60 Hz, max. peak 300 VA
Power Consumption
  • Instrument off:  0 W
  • Normal operating conditions: 25 W
  • Normal operating conditions, incubation set to 37oC: 60 W
