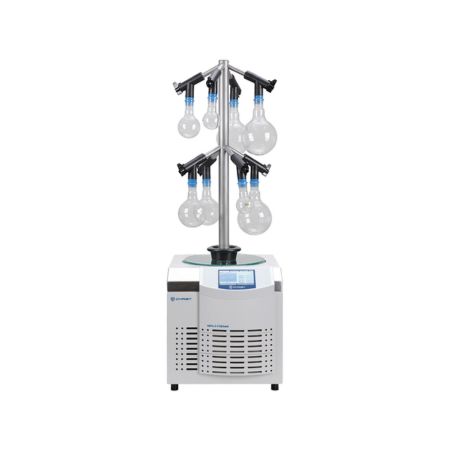

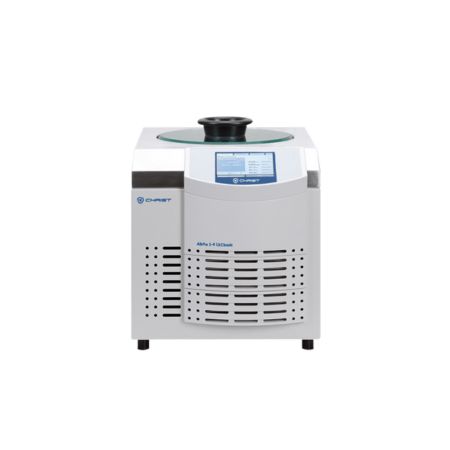

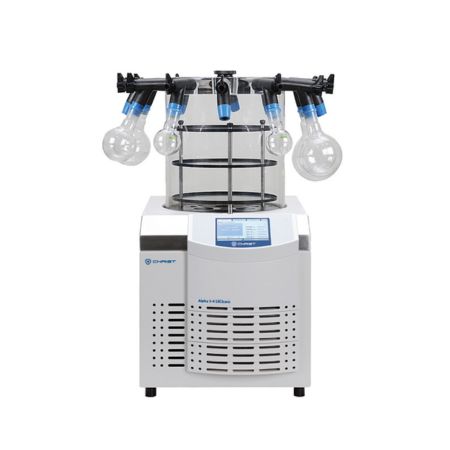

Alpha 1-4 LSCbasic
Universal table-top unit with compact form for efficient lyophilization of samples for everyday lab work. The LSCbasic user interface brings clear simplicity to the task. You can choose from a wide range of configurations to adapt the freeze dryer optimally to your specific needs.
- Alpha 1-4 LSCbasc: –55°C Condenser for typical aqueous solutions
- Alpha 2-4 LSCbasic: –85°C Condenser for drying solutions with low freezing points
- Condenser capacity: 4 kg
- Condenser performance 4kg/24 hours
- Touchscreen LSCbasic controller as standard
- Standard bench-top system
- 3 or 5 unheated shelves with 12 flask ports chamber
- Compatible with the front loading Lyocube system for easier loading and larger shelf drying capacity
- Display of vacuum, sample temperature, ice condenser temp, run time
- Vacuum control option
- RS232 communication port
- Numerous configurations available
- Attachments for ampoules, round bottomed flasks, wide-necked filter bottles
- Complete system includes vacuum pump
LSCbasic system controller
Cutting-edge technologies are collated into an easy-to-use, intuitive user interface with the LSCbasic system controller. Automatic process sequences ensure reproducible results.
- 5.7" colour touchscreen with clear layout
- Automatic or manual sequencing of freeze drying processes
- Interactive graphic display of the system schematic
- Extensive message texts (cause, countermeasures, effect)
- Maintenance interval for vacuum pump and system
- System test (leakage and performance test)
- Multiple language selection
- Selectable units of measure for temperature °C/°F and pressure mbar/hPa/Torr
- Password protection available
- Process data capture and option for data exchange via USB or Ethernet
