Single Position Heating Mantle

Cole-ParmerĀ® SHM-200 Series Stirring/Heating Mantles

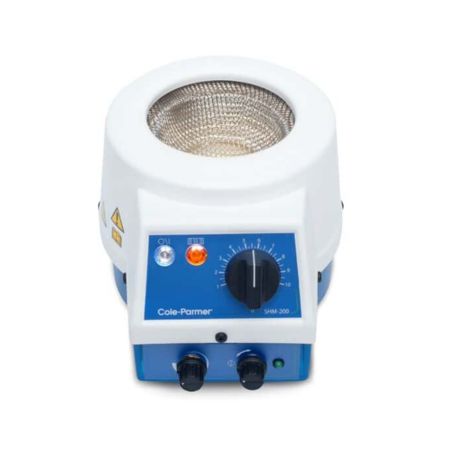

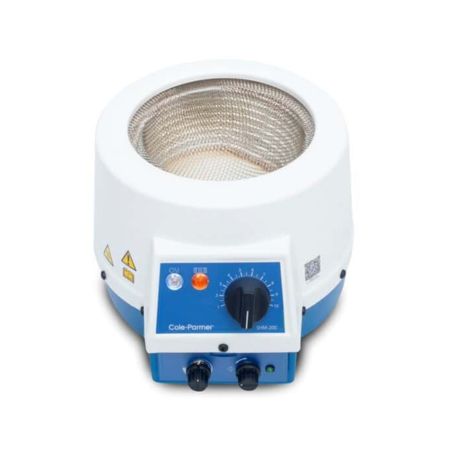

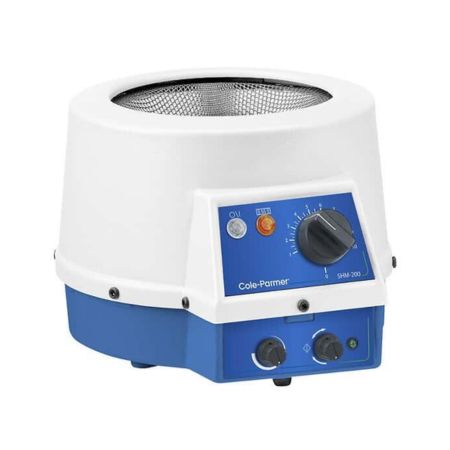

Cole-Parmer® SHM-200 Series Stirring/Heating Mantles


Provides powerful stirring speeds up to 520 rpm and heating up to 450°C
  • Bidirectional stirring with stir bar auto capture function
  • Thermal insulating cartridge provides maximum heat transfer
  • Chemical resistant polypropylene housing is "safe to the touch"
Stir your sample while heating up to 450°C (842°F). These durable stirring/heating mantles feature a bidirectional magnetic stirrer with speeds up to 520 rpm. An “auto-recapture” function reactivates stirring if it is interrupted or lost for any reason.

A built-in power controller with dial markings from 1 to 10 offer great repeatability. Two colored lights indicate "power on" and "heat on." The replaceable coiled heating element suspended within a thermal insulating cartridge provides maximum heat transfer and support.

Unique ventilation slots and ceramic fiber insulation keep the chemical-resistant polypropylene exterior cool even while in use. A safety earth (ground) screen and double fuses provide added safety.
Code Description Max Flask Size (mL) Max temperature (° F)
WZ-04641-05

 Cole-Parmer SHM-200-50 Stirring/Heating Mantle, 50 mL Capacity; 230 VAC


50 230
WZ-04641-15

 Cole-Parmer SHM-200-100 Stirring/Heating Mantle, 100 mL Capacity; 230 VAC


100 230
WZ-04641-25

 Cole-Parmer SHM-200-250 Stirring/Heating Mantle, 250 mL Capacity; 230 VAC


250 230
WZ-04641-35

 Cole-Parmer SHM-200-500 Stirring/Heating Mantle, 500 mL Capacity; 230 VAC


500 230
WZ-04641-45

 Cole-Parmer SHM-200-1000 Stirring/Heating Mantle, 1000 mL Capacity; 230 VAC


1000 230
WZ-04641-55

 Cole-Parmer SHM-200-2000 Stirring/Heating Mantle, 2000 mL Capacity; 230 VAC


2000 230
