Benchtop Centrifuges

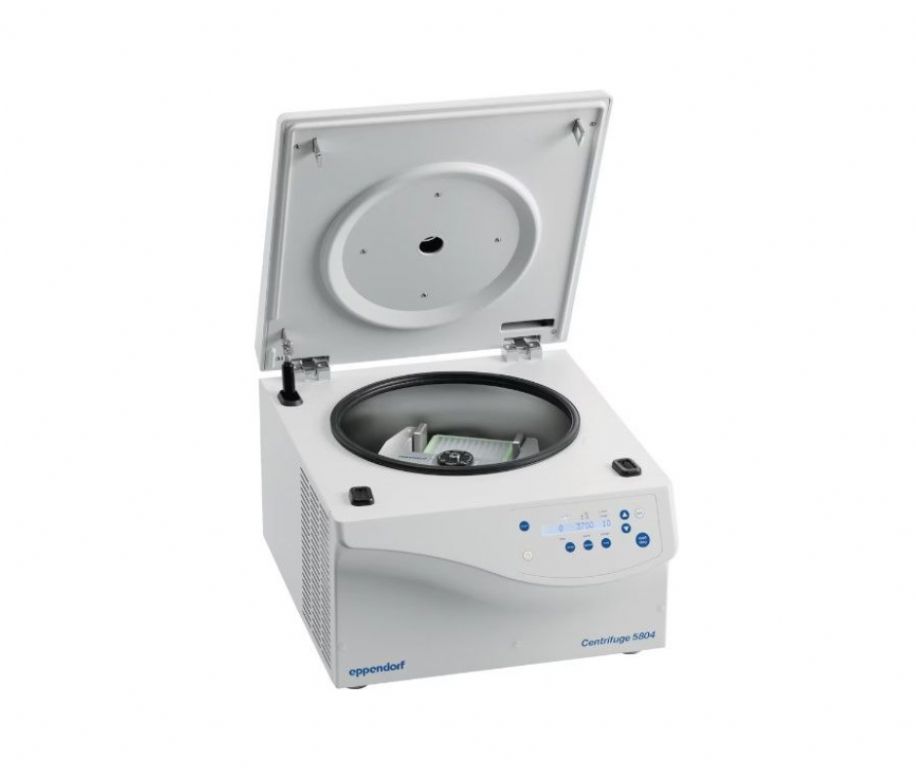

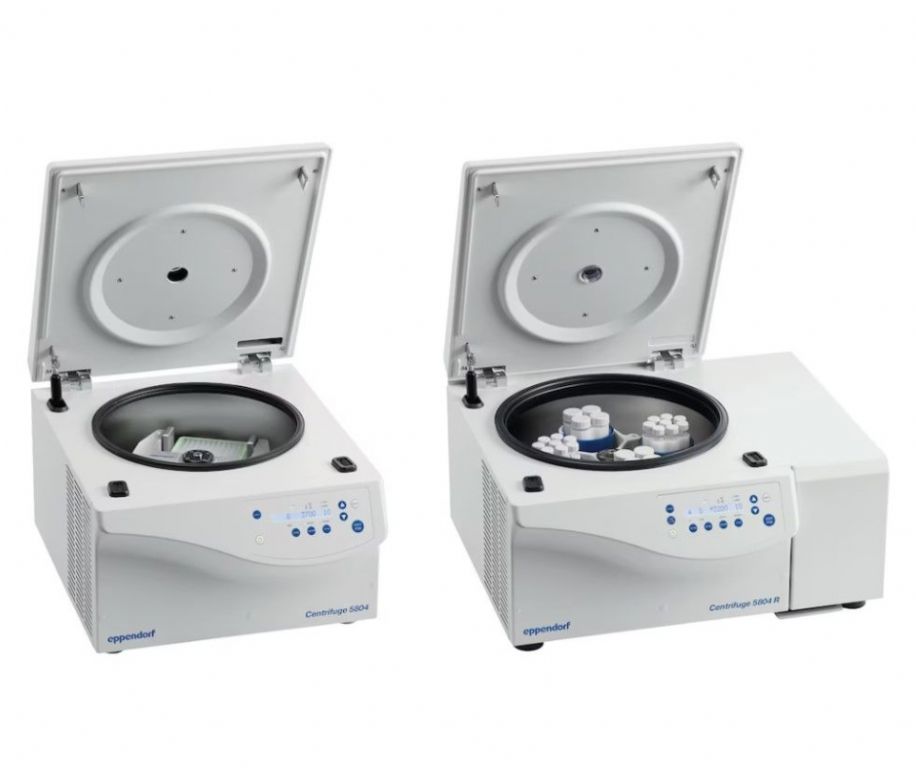

Eppendorf 5804/5804 R - Benchtop Centrifuge

Eppendorf 5804/5804 R - Benchtop Centrifuge


The high-speed benchtop centrifuge Centrifuge 5804/5804 R is suitable for medium-throughput molecular biology applications. It handles all common tube formats from 0.2?mL to 250 mL as well as plates, offering a with high versatility thanks to a broad range of rotors and adapters.


Key Features:

  • Swing-bucket rotors and adapters accommodate tubes and bottles from 0.2 mL to 250 mL
  • Plate rotor for centrifugation of all types of MTP, PCR, cell culture, or Deepwell Plates
  • Fixed-angle rotors for high-speed applications in tubes from 0.2 mL to 85 mL
  • High centrifugation speed of up to 20,913 × g (14,000 rpm)
  • Centrifuge lid with soft-touch lid closure
  • Low access height of 29 cm for easy loading and unloading of samples
  • Quiet operation to improve your work environment
  • Compact footprint saves valuable bench space
  • Automatic rotor recognition and imbalance detection for maximum operational safety


Additional features of refrigerated Centrifuge 5804 R:

  • Temperature range from -9 °C to 40 °C
  • FastTemp function for fast pre-cooling
  • Continuous cooling maintains a constant temperature after the run has been completed – your samples stay cool
  • ECO shut-off engages after 8 hours of non-use to reduce energy consumption and to extend compressor life
  • Dynamic compressor control (DCC) technology for optimized cooling performance

Specifications

5804

5804R

Max. RCF

20,913 x g

20,913 x g

Max. RCF with fixed-angle rotor

20,913 x g

20,913 x g

Max. RCF with swing-bucket rotor

4,500 x g

4,500 x g

Max. RCF with plate rotor

2,250 x g

2,250 x g

Display

Large, Brightly lit LCD

Large, Brightly lit LCD

Speed

200 – 14,000 rpm (10 rpm steps)

200 – 14,000 rpm (10 rpm steps)

Rotors available

12

12

Max. capacity

4x250mL / 2x5 MTP

4x250mL / 2x5 MTP

Number of programs

35 user-defined programs

35 user-defined programs

Timer

1min to 99min, with continuous run function, short-spin

1min to 99min, with continuous run function, short-spin

Noise level

< 62dB(A)

< 58dB(A)

Volume range

1,000mL

1,000mL

Power supply

230 V, 50-60 Hz

230 V, 50-60 Hz

Max. Power consumption

900 W

1650 W

Dimensions (WxDxH)

46.6x55x33.7cm / 18.4x21.7x13.3in

63.4x55x34.2cm / 25x21.7x13.5in

Footprint (dimensions w/o Front panel, WxD)

47x50cm / 18.4x21.7in

64x50cm / 25x21.7in

Weight w/o accessories

55kg / 121.3lb

80kg / 176.4lb

Height (lid open)

74cm / 29in

74cm / 29in

Cooling

Non-refrigerated

Refrigerated

Temperature range

-

-9°C to 40°C

  • eppendorf centrifuge family 2023
  • 5804-5804 r - benchtop centrifuge datasheet 2023
