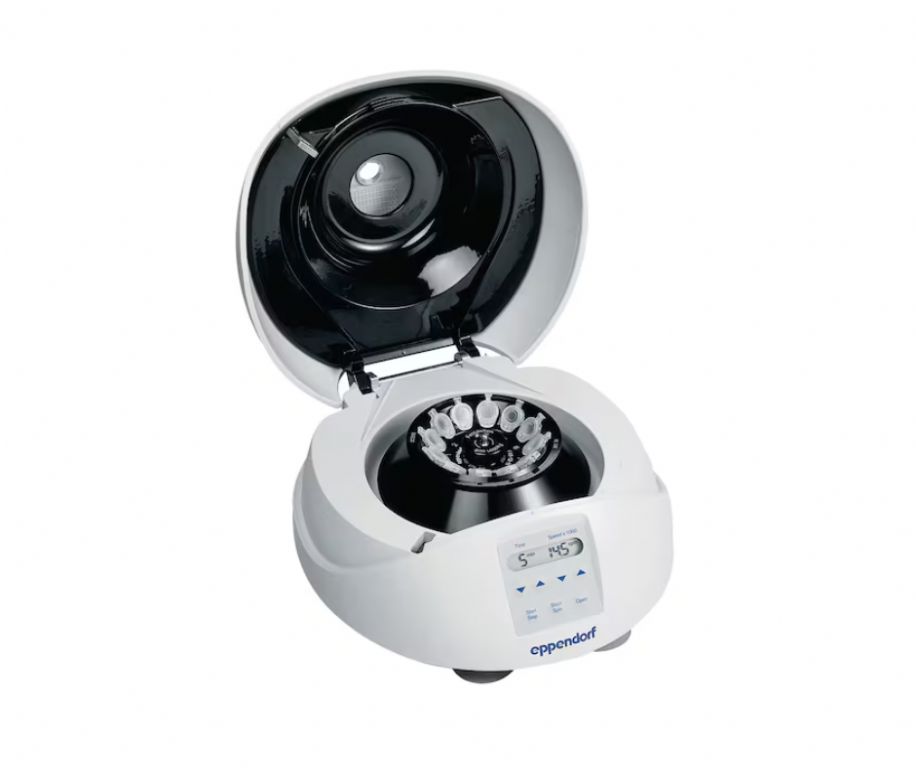

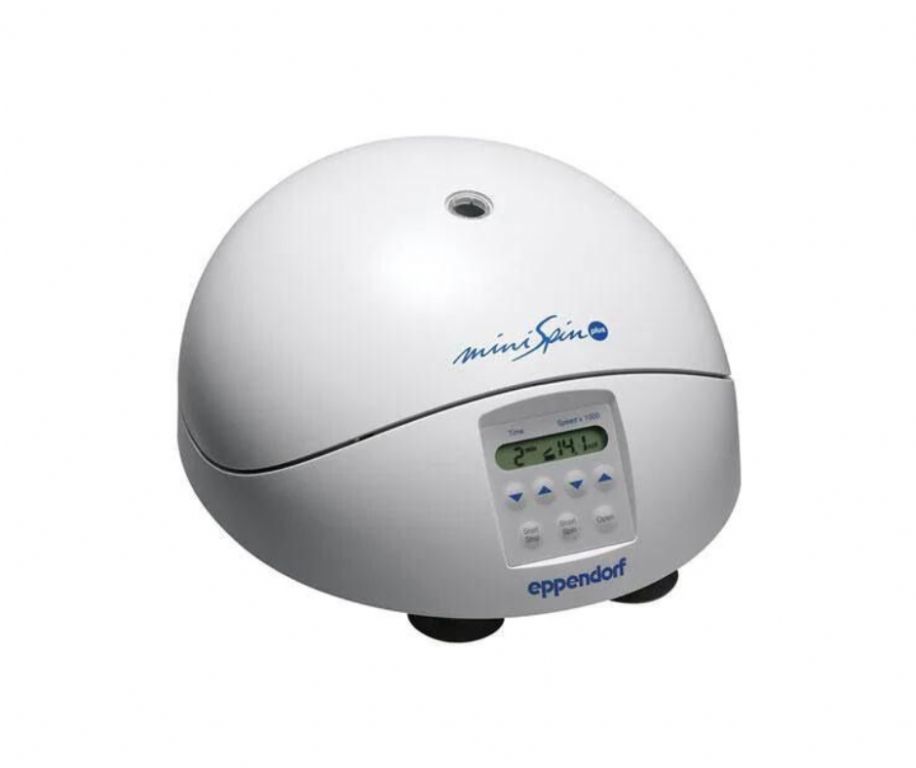

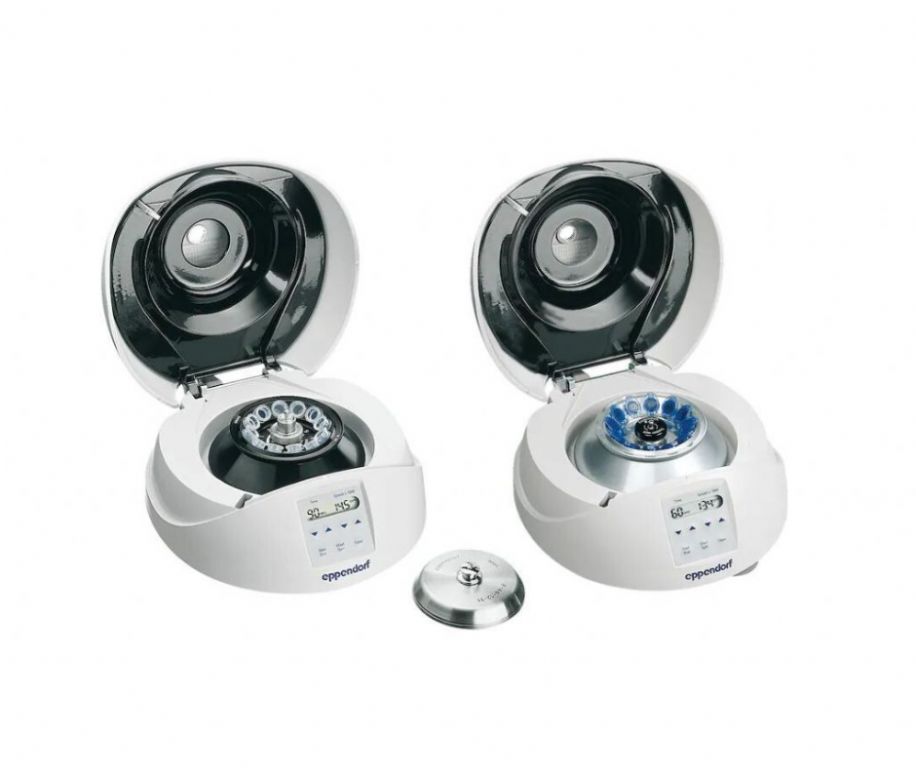

Eppendorf MiniSpin® / MiniSpin® plus
MiniSpin® and MiniSpin® plus are entry-level mini centrifuges that are powerful, easy-to-use and small enough to allow individual workstations to be equipped with a portable centrifuge.
Key Features:
- Rotor capacity: 12 × 1.5/2.0 mL vessels, 2 × 8-tube PCR strips
- Max. speed: 14,100 × g (14,500 rpm)
- Extremely compact footprint
- Acceleration and deceleration time
- User-friendly digital display for time and speed
- Metal rotor bowl
- Separate short-spin key for fast and comfortable centrifugation
- Optimal ventilation flow reduces heating and protects temperature-sensitive samples
- Soft-touch lid closure for ergonomic lid locking
- Automatic lid opening at the end of the run to prevent sample warming and to allow easy access to samples
Special features for MiniSpin plus
- Automatic rpm/rcf conversion
- Extended time to 99 min or continous centrifugation
|
Specifications
|
MiniSpin®
|
MiniSpin® plus
|
|
Max. RCF
|
12100 x g
|
14100 x g
|
|
Max. RCF with fixed-angle rotor
|
12100 x g
|
14100 x g
|
|
Display
|
LCD
|
LCD
|
|
Speed
|
800 – 13,400 rpm (100rpm steps)
|
800 – 14,500 rpm (100 rpm steps)
|
|
Rotors available
|
2
|
2
|
|
Max. Capacity
|
12x1.5/2.0mL
|
12x1.5/2.0mL
|
|
Acceleration time 1)
|
13s
|
13s
|
|
Deceleration time 1)
|
12s
|
12s
|
|
Timer
|
15s – 30min
|
15s to 99 min, with continuous run function
|
|
Noise level
|
<49 dB(A)
|
<52 dB(A)
|
|
Volume Range
|
24mL
|
24mL
|
|
Power Supply
|
230 V, 50-60Hz
|
230 V, 50-60Hz
|
|
Max. power consumption
|
70 W
|
85 W
|
|
Dimensions (WxDxH)
|
22.5x23x13cm / 8.86x9.06x5.12in
|
22.5x23x13cm / 8.86x9.06x5.12in
|
|
Weight w/o accessories
|
3.7kg / 8.16lb
|
4.1kg / 9lb
|
|
Height (lid open)
|
25cm / 9.8in
|
25cm / 9.8in
|
|
Cooling
|
Non-refrigerated
|
Non-refrigerated
|
1)Acceleration and deceleration times may vary depending on rotor, load and voltage version.
