FrameStar® 384 Well Skirted PCR Plate (Various Colours)

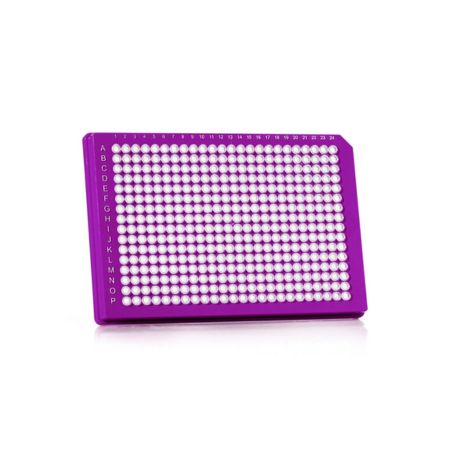

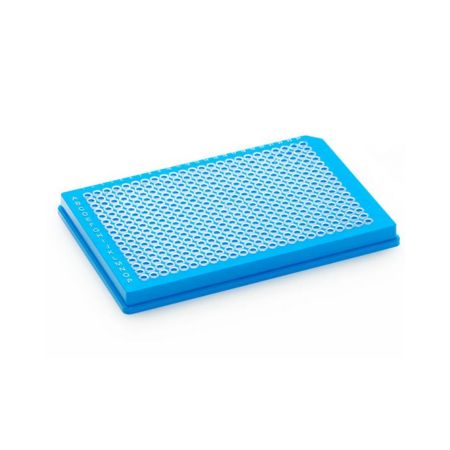

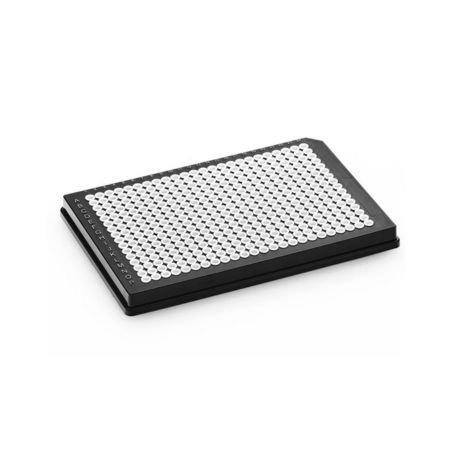

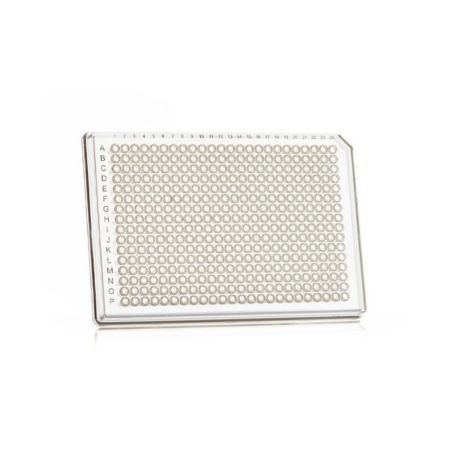

FrameStar® 384 Well Skirted PCR Plate

384 well skirted plates designed for high-throughput PCR. Compatible with most 384 well block PCR, qPCR and sequencing instruments. Rigid frame eliminates warping and distortion during PCR. Ideal for use with robotic systems.

  • PP wells, PC frame; cut corner A24
  • <30µl working volume, 55µl total well capacity
  • Available barcoded on request
  • Ultra-low DNA binding option available

Low DNA Binding Plates

  • Azenta Life Sciences offer low binding products, recommended to support sensitive techniques such as qPCR and Next Generation Sequencing (NGS), as well as storage of samples.
  • Manufactured using selected low-bind polymers, DNA loss is minimized during incubation and sample transfer, making it the ideal solution for use in applications with low DNA input.
  • Low binding feature results from selected low-bind polymers, no coating is used to achieve the binding characteristics. No contamination or modification of the samples.
  • Tested under a broad temperature range. Maximum DNA recovery after low temperature storage and high temperature incubations.
  • No detectable DNA loss during incubation steps and sample transfer in NGS sample prep and library construction. Ideally suited for sensitive applications with ultra-low nucleic acid input.

FrameStar® 384 Well Skirted PCR Plate

Plate length 127.76 ± 0.25mm
Plate width 85.48 ± 0.25mm
Plate height 10.60 ± 0.25mm
Well depth 9.60 ± 0.10mm
Well diameter 3.10 ± 0.10mm
Total well capacity 55µl
Working volume <30µl
Distance to center of A1 from top edge 8.99 ± 0.25mm
Distance to center of A1 from left edge 12.13 ± 0.25mm
Pitch (distance between A1 and A2) 4.50mm





ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC
Thermal Cyclers (384 well block): GeneAmp® 9700 | Verity | Proflex | Multiblock system
qPCR Cyclers (384 well block): QuantStudio™ 5/6/7/12K | ViiA7™ | 7900 HT FAST
Sequencers (384 well block): 3100 | 3130XL | 3500 | 3500XL | 3730 | 3730XL
AGILENT/STRATAGENE
Thermal Cyclers (384 well block): SureCycler 8800
ANALYTIK JENA/BIOMETRA
Thermal Cyclers (384 well block): Flexcycler2 | T1 Thermocycler | Tadvanced | TProfessional | Trobot 96
qPCR Cyclers (384 well block): qTOWER3 84/84G
BIOER TECHNOLOGIES
Thermal Cyclers (384 well block): Gene Touch 384
BIO-RAD
Thermal Cyclers (384 well block): C1000 Touch | S1000
qPCR Cyclers (384 well block): CFX384 Touch
BIO-RAD MJ RESEARCH
Thermal Cyclers (384 well block): PCT200™/220™/221™/225™/240™
CORBETT RESEARCH
Thermal Cyclers (384 well block): (Qiagen) Palm Cycler 384
EPPENDORF
Thermal Cyclers (384 well block): MasterCycler® ep 384/Pro 384
GE HEALTHCARE/AMERSHAM
Sequencers (384 well block): MegaBACE™ 4000
PEQLAB/VWR
Thermal Cyclers (384 well block): peqSTAR 384X
SENSOQUEST
Thermal Cyclers (384 well block): Labcycler
TECHNE
Thermal Cyclers (384 well block): Prime | PrimeG | Prime Elite | Prime Elite Satellite | PCRmax Alpha cycler 1/2/4 | TC412 | TC512 | Genius | Genius Quad | Flexigene
  • framestar 384 well skirted pcr plate (various colours) low binding product guide premier scientific
  • framestar 384 well skirted pcr plate (various colours) instrument compatibility table premier scientific
