FrameStar® 96 Well Non-Skirted PCR Plate, Low Profile
96 well non-skirted universal plates, designed for use on all major thermal cyclers. Low profile wells, especially recommended for reaction volumes <20µl. Rigid frame eliminates warping and distortion during PCR.
- PP wells, PC frame; cut corner H1
- <100µl working volume, 200µl total well capacity
Quality
- Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
Wells
- Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
- <0.1ml (100µl) working volume, 0.2ml (200µl) total well capacity
- Low profile wells, shorter than “standard” profile wells, to decrease the “dead space” between the heated lid of the thermal cycler and the sample in the well
- Eliminates condensation forming on the side wall of the tubes, preventing reduction in PCR volume and increasing the efficiency of the reaction
Frame
- Rigid polycarbonate frame for added mechanical stability
- Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results
- Improved seal integrity due to thermal stability of frame
- Alphanumeric grid reference to aid well and sample identification
Use
- Recommended for low volume PCR
- Compatible with standard multichannel pipettes
Options

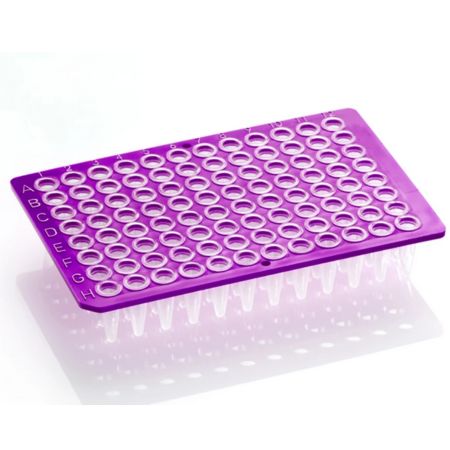

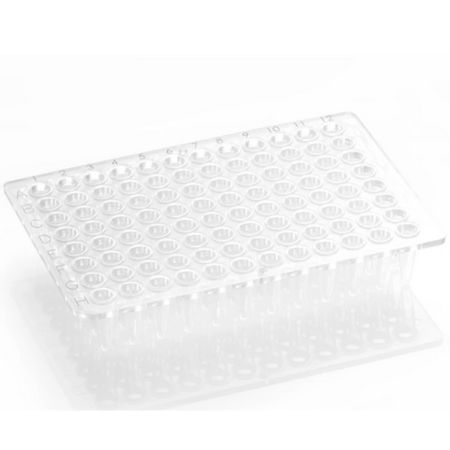

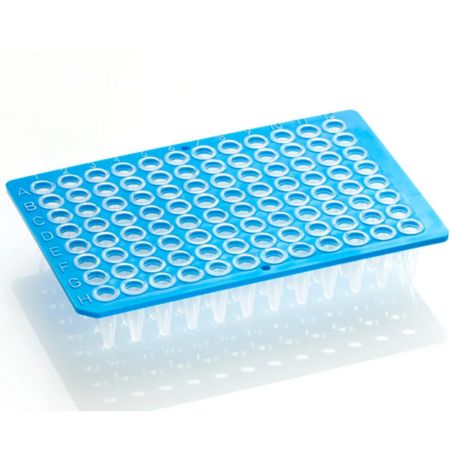

- Available with the following frame color options for the clear well variety: purple, blue, and clear

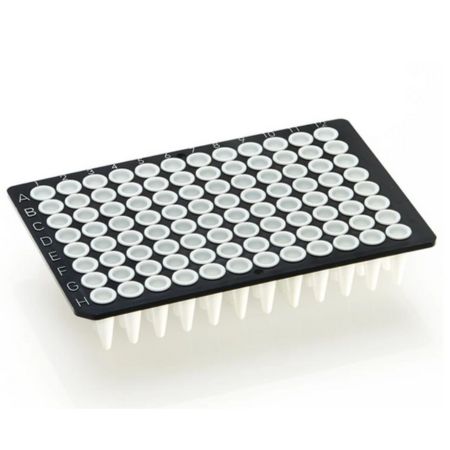

- Also available as a black frame with white wells for optimum signal-to-noise ratio when using fluorescent based assays
