PCR Plates

FrameStar® 96 Well Non-Skirted PCR Plate (Various Colours)

FrameStar® 96 Well Non-Skirted PCR Plate

96 well non-skirted universal plates with standard profile wells, designed for use on all major thermal cyclers. Rigid frame eliminates warping and distortion during PCR.

  • PP wells, PC frame; cut corner H1
  • <200µl working volume, 300µl total well capacity
  • Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
  • Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
  • Rigid polycarbonate frame for added mechanical stability
  • Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results
  • Improved seal integrity due to thermal stability of frame
  • Alphanumeric grid reference to aid well and sample identification
  • Recommended for low volume PCR
  • Compatible with standard multichannel pipettes

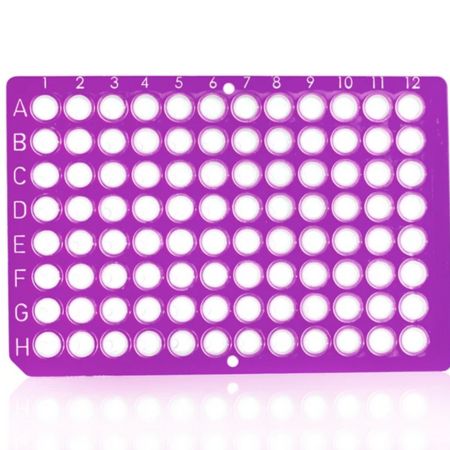

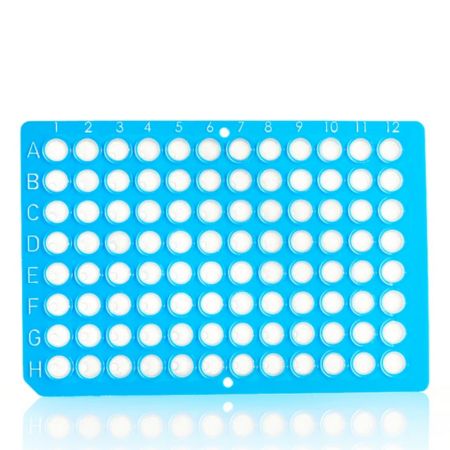

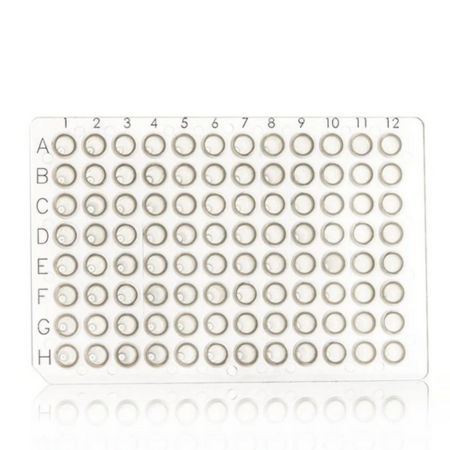

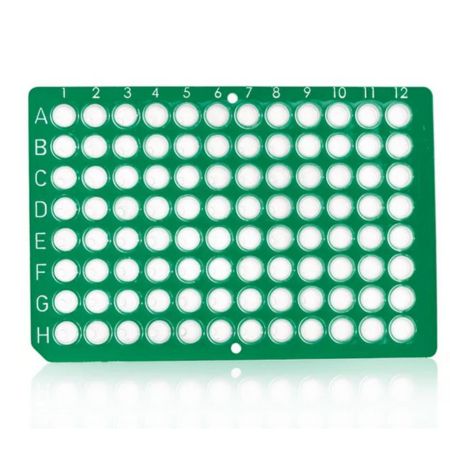

  • Available with the following frame color options for the clear well variety: purple, blue, clear, green, red
  • Also available as a black frame with white wells for optimum signal-to-noise ratio when using fluorescent based assays

FrameStar 96 Well Non-Skirted PCR Plate

Plate length 120.00 ± 0.25mm
Plate width 80.00 ± 0.25mm
Plate height 20.70 ± 0.25mm
Well depth 20.20 ± 0.10mm
Well diameter 5.46 ± 0.10mm
Total well capacity 0.3ml (300µl)
Working volume <0.2ml (200µl)
Distance to center of A1 from top edge 8.50 ± 0.25mm
Distance to center of A1 from left edge 10.50 ± 0.25mm
Pitch (distance between A1 and A2) 9.00mm



Compatibility


ABI®/LIFE TECHNOLOGIES/THERMO FISHER SCIENTIFIC

Thermal Cyclers (96 well standard block): GeneAmp® 2700/2720/9600/9700
qPCR Cyclers (96 well standard block): 7000 | 7300 | 7500 | 7700 | 7900 HT
Sequencers (96 well block): 3100 | 3130XL | 3500 | 3500XL | 3730 | 3730XL
AGILENT/STRATAGENE

Thermal Cyclers (96 well block): Surecycler 8800 | Robocycler Gradient
qPCR Cyclers (96 well block): Mx3000P™ | Mx3005P™ | Mx4000™
ANALYTIK JENA/BIOMETRA

Thermal Cyclers (96 well block): Flexcycler2 | T1 Thermocycler | Tgradient | Tone | Tadvanced | TProfessional (Standard/Basic) Gradient/XL | Trobot 96 | SpeedCycler 2 (SP, SPR)
qPCR Cyclers (96 well block): qTower™/G/touch | Toptical
BIOER TECHNOLOGIES

Thermal Cyclers (96 well block): Gene Touch 96
BIO-RAD

Thermal Cyclers (96 well block): C1000 Touch | S1000 | iCycler™ | MyCycler™ | T100
qPCR Cyclers (96 well block): MyiQ™ | iCycler™ IQ/IQ 4/IQ 5
BIO-RAD MJ RESEARCH

Thermal Cyclers (96 well block): Personal | PTC100™/200™/220™/221™/225™/240™
qPCR Cyclers (96 well block): Chromo4™
CORBETT RESEARCH

Thermal Cyclers (96 well block): (Quiagen) Palm Cycler
EPPENDORF

Thermal Cyclers (96 well block): MasterCycler® ep/ep gradient/Pro/Pro S/nexus/nexus gradient/nexus SX1/nexus GSX1
qPCR Cyclers (96 well block): Mastercycler™ ep realplex
PEQLAB/VWR

Thermal Cyclers (96 well block): peqSTAR 96X
SENSOQUEST

Thermal Cyclers (96 well block): Labcycler
TAKARA

Thermal Cyclers (96 well block): Dice touch | Gradient
TECHNE
Thermal Cyclers (96 well block): Prime | PrimeG | Prime Elite | Prime Elite Satellite | PCRmax Alpha cycler 1/2/4 | TC412 | TC512 | Genius | Genius Quad | Touchgene | Touchgene Gradient | Flexigene
