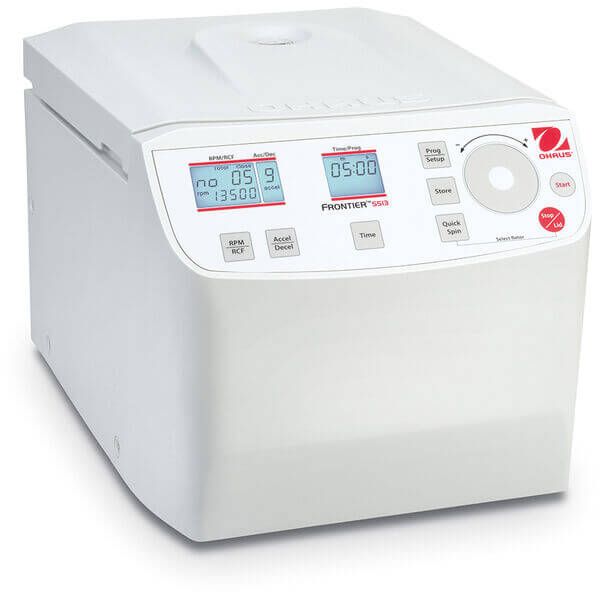

Frontier™ 5000 Series Micro Centrifuge FC5513+R02

The Frontier™ 5000 Series Micro Centrifuge FC5513+R02 is a dependable high-speed benchtop centrifuge designed for modern laboratory workflows. Available through OHAUS and supplied by Premier Scientific, this compact micro centrifuge delivers powerful, consistent performance for routine and advanced sample processing.

With a speed range of 200 rpm to 13,500 rpm and a maximum relative centrifugal force of 17,317 x g, it is ideal for DNA and RNA preparation, ultrafiltration, and general microvolume separation. The unit supports a 24 x 1.5/2.0 ml rotor capacity, making it suitable for high-throughput laboratory environments.

Designed with user efficiency in mind, the centrifuge features an intuitive LCD interface with backlight, allowing quick access to key parameters such as speed, time, and program settings. The brushless motor ensures quiet operation and long-term reliability, while the compact footprint helps conserve valuable bench space.

For added safety, compatible biocontainment rotor options support work with hazardous samples. With up to 99 program memories, 10 acceleration and deceleration settings, and multiple running modes including quick spin, the FC5513+R02 offers flexibility across a wide range of laboratory applications.

Frontier™ 5000 Series Micro Centrifuge – FC5513+R02 (230V)

Technical Specifications

• Speed Range: 200 rpm – 13,500 rpm
• Maximum Relative Centrifugal Force (RCF): 17,317 × g
• Maximum Capacity (Rotor): 24 × 1.5 / 2.0 ml tubes
• Rotor Included: Angle rotor 24 × 1.5/2.0 ml BIOSEALS (30472302)
• Program Memory: 99 programs
• Acceleration / Deceleration Levels: 10 / 10
• Running Time: Continuous; Quickspin; 10 sec to 99 h 59 min 59 sec

Controls & Display

• LCD display with backlight (2-line)
• Intuitive interface with programmable settings

Construction & Design

• Brushless motor (quiet operation)
• Compact benchtop footprint
• Mechanical lid lock
• Manual rotor recognition
• Designed for high-throughput workflows

Dimensions & Weight

• Dimensions (L × W × H): 356 × 236 × 277 mm (14 × 9.3 × 10.9 in)
• Net Weight: 13.1 kg (28.9 lb)

Performance & Environment

• Noise Level: ≤60 ±2 dB(A)
• Power Consumption: 170 W
• Working Temperature: 5°C – 35°C (41°F – 95°F)
• Humidity: ≤80% RH, non-condensing

Electrical

• AC power (230V model included)

Safety & Compliance

• CE certified
• FCC compliant

Rotor Compatibility

• 24 × 1.5/2.0 ml angle rotor (BIOSEALS V1)
• Hematocrit rotor (24 capillaries)
