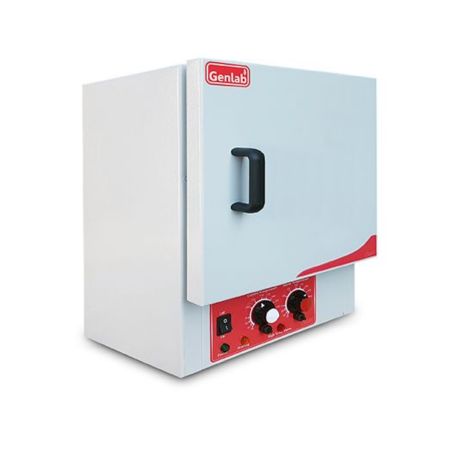

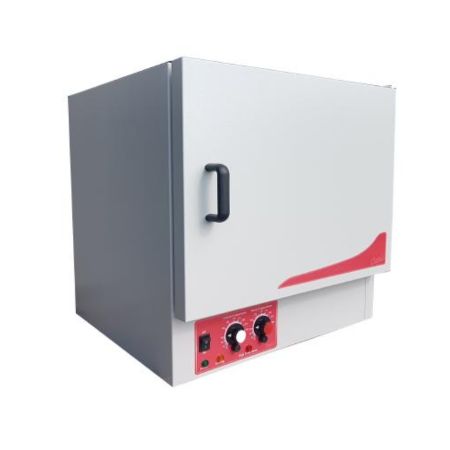

Genlab Classic Laboratory Oven
The GENLAB Classic Range of ovens offers a selection of highly efficient, reliable and cost effective units to suit most drying, warming and general laboratory applications. The simple to use thermostat system is good for teaching purposes and the units can be built up to meet individual requirements.
Specifications
- 7 sizes 6 to 100 litres
- Temp range 40 °C to 250 °C
- Fluctuation +/- 0.75 °C
- Easy to use thermostatic control
- Independent overheat thermostat
- Easy clean powder coated body
Options
- Fan assisted circulation (not available below 30L)
-
Stainless steel chamber
-
Access ports (25, 50, 75 or 100mm)
-
Traceable calibration certificate to National Standards
-
Bespoke stands and stacking kits
-
Extended warranty
Genlab Classic Oven Design
The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD) with a stainless steel (SS) chamber available as an option.
Fitted with fixed shelf runners and removable chrome plated wire grid shelves.
Genlab Classic Oven Heating
Heated by Incoloy sheathed elements, positioned below the chamber floor for natural convection units and fitted around the fan on the back wall of the chamber for mechanical convection units.
Genlab Classic Oven Controls
The control system comprises of a direct reading thermostat and overheat thermostat, both with calibrated scales and tamper proof locks. They also include a mains switch with indicator and heating and overheat indicators.
Ordering
All units have CLAD interior with thermostatic control and overheat.
Where options are required simply add the option code to the original reference.
E.g. MINO/75 with stainless steel interior and fan circulation becomes MINO/75/SS/F.
Contact sales for bespoke options.
Option codes
Fan Assisted - F
Stainless Steel Chamber - SS
Access Ports - AP
Traceable Calibration - SPC
Stands - STAND
Stacking Kits - STACK
Extended Warranty - X1
Genlab Classic Oven Specifications
Genlab ref.
Number |
Capacity
(litres) |
Internal dims.
(H x W x D cms) |
External dims.
(H x W x D cms) |
No. of
Shelves..
Positions
|
Wattage |
Weight
(kg) |
| without fan |
with fan |
| MINO/6 |
6 |
15 x 23 x 19 |
39 x 32 x 33 |
N/A |
1...1 |
350 |
16 |
| MINO/18 |
18 |
26 x 26 x 27 |
52 x 38 x 41 |
N/A |
2...2 |
500 |
21 |
| MINO/30 |
30 |
24 x 36 x 35 |
50 x 48 x 49 |
50 x 48 x 62 |
2...2 |
750 |
30 |
| MINO/40 |
40 |
32 x 36 x 35 |
58 x 48 x 49 |
58 x 48 x 62 |
2...3 |
750 |
35 |
| MINO/50 |
50 |
33 x 49 x 33 |
59 x 61 x 47 |
59 x 61 x 59 |
2...3 |
750 |
45 |
| MINO/75 |
75 |
33 x 49 x 45 |
59 x 61 x 60 |
59 x 61 x 72 |
2...3 |
1000 |
55 |
| MINO/100 |
100 |
45 x 49 x 45 |
71 x 61 x 60 |
71 x 61 x 72 |
3...3 |
1000 |
60 |
