Genlab Large Capacity Multi-Purpose Oven
The GENLAB Large Capacity Multipurpose Ovens offers a selection of highly efficient, reliable and cost effective ovens to suit most warming, drying and heat treatment processes. They feature our latest touch screen control system which offer intuitive control and excellent accuracies designed for industrial and laboratory ovens
Features
- Capacities 250 to 1250 Litres
8 sizes (single door design)
9 sizes (twin door design)
- Temperature range:
50ºC to 250ºC
- On screen historical trending (48hours)
- 8 Stage profile control
- Count down timer
- 24/7 real time clock operation
- Manual or automatic overheat reset
- High accuracy Pt100B duplex sensors <0.8ºC
- Fan assisted circulation
- Excellent stabilty <+/- 0.6ºC
- Low chamber uniformity
- Energy efficient with integral energy meter
- New - Set point lock feature
Options
- 10 Menu x 8 Stage Profile Controller with Cyclic feature
- Stainless steel chamber
- Audible warnings
- Explosion relief panels
- Access ports (25m 50, 75 or 100mm)
- Traceable calibrations to national standards
- Bespoke stands and stacking kits
- Extractor unit
- Extended warranty
- Bespoke solutions available upon request
- 3 Phase upgrade for quicker response (standard above 600L)
Design
The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD) with a stainless steel chamber available as an option.
Fitted with fixed shelf runners and removable chrome plated wire grid shelves.

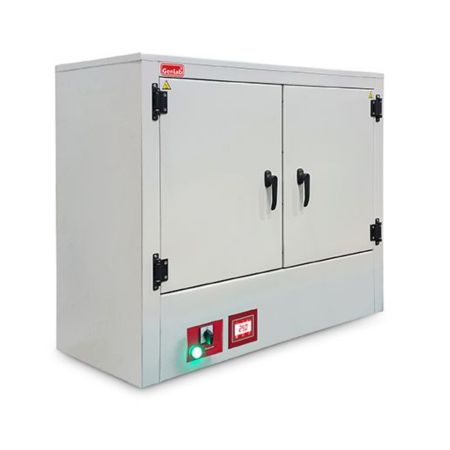

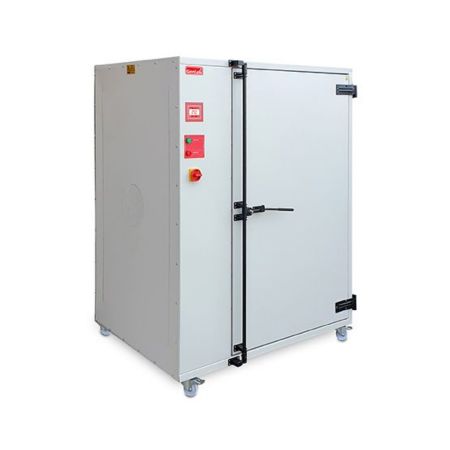

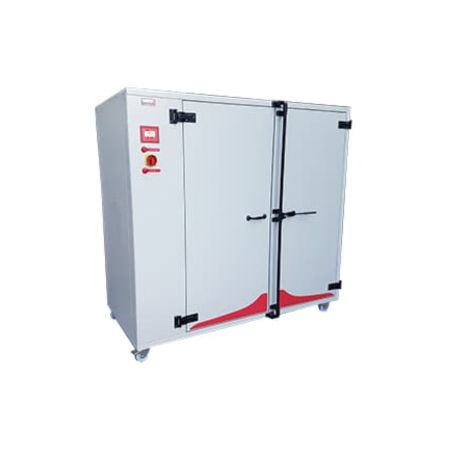

The vertical style units are fitted with single doors, the horizontal style units are fitted with twin doors.
Heating
Heated by Incoloy sheathed elements positioned in the side fan duct for all units except the 250H and 350H which have a base fan duct.
Controls
The control system comprises of a bespoke touch screen interface that offers both accurate temperature control and integral overheat system by using 2 individual Pt100 sensors. Advance features can be turned on and off to suit bespoke heating applications and tailored to customer preference. Oven trending is displayed for up to 48 hours and optional upgrades are available for alarm outputs.
The control panels are fitted on the side of each unit except the 250H and 350H, which are fitted in the base.
Ordering
All units have CLAD interior with touch screen interface as standard.
Where options are required simply add the option code to the original reference.
E.g. LCO/1250/TDIG with stainless steel interior and audible alarm becomes LCO/1250/TDIG/SS/AWA
Contact sales for bespoke options.
Option codes
10 Menu x 8 Stage Profile Controller with Cyclic feature - 10PRO
Stainless steel chamber - SS
Audible Warning - AWA
Explosion Relief Panels - EXP
Access Ports - AP
Traceable Calibration - SPC
3 Point Traceable Calibration - 3PC
Stands - STAND
Extractor Systems - EXT
Extended Warranty - X1
Castor Wheels (250/350 models only) - 1108
3 Phase upgrade (<600L models only) - 3PH
