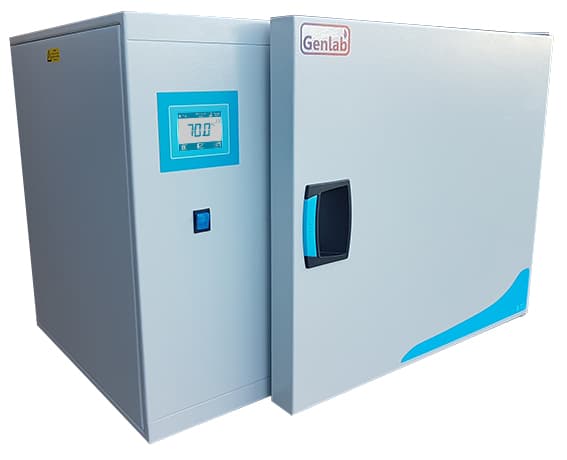

Genlab Multi Purpose Benchtop Incubators
The Genlab range of Benchtop Incubators offers a range of highly efficient, reliable and cost effective units to suit most biological analsyis, research and general laboratory applications. Available in a variety of sizes and designed with both side or base mounted displays to suit your exact needs. Featuring our latest touch screen control system which offers intuitive control and excellent accuracies designed for industrial and laboratory incubators.
Specifications
- 10 sizes 6 to 200 litres (base mount controller design)
- 6 sizes 50 to 200 litres (side mount controller design)
- Temp range (ambient +5ºC) to 70ºC
- Fluctuation +/-0.25 ºC @ 37 ºC
- High resolution 0.1ºC
- On screen historical trending (48 hours)
- Manual or automatic overheat reset
- High accuracy Pt100B duplex sensors<0.8ºC
- Excellent stability <+/-0.6ºC (fan assisted)
- Low chamber uniformity
- Energy efficient with integral energy meter
- New - Set point lock feature
Options
- Fan assisted circulation (not available <30L)
- Stainless steel chamber
- Viewing windows
- Inner glass doors
- 8 Stage profile control
- Count down timer
- 24/7 real time clock operation
- Access ports (25, 50, 75 or 100mm)
- Audible warnings
- Traceable calibrations to national standards
- Bespoke stands and stacking kits
- Extractor unit
- Extended warranty
- Internal lights
- Bespoke solutions available upon request
- 10 Menu x 8 Stage Profile Controller with Cyclic feature
Benchtop Oven Design
The exterior is constructed from sheet steel and finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD), with a stainless steel (SS) chamber available as an option.
They are fitted with fixed shelf runners and removable chrome plated wire grid shelves.
Benchtop Oven Heating
Heated by Incoloy sheathed elements; positioned in the base of the oven on all natural convection ranges. Fan assisted ranges have elements in the rear on base mount designs and in the side on side mount designs.
The 200 litre units have fan circulation as standard.
Benchtop Oven Controls
The control system comprises of a bespoke touch screen interface that offers both accurate temperature control and an integral overheat system using 2 individual Pt100 sensors. Advanced features can be turned on and off to suit bespoke heating applications and tailored to customer preference. Oven trending is displayed for up to 48 hours and optional upgrades are available for alarm outputs
Ordering
All units have CLAD interior with a touch screen interface as standard.
Where options are required simply add the option code to the original reference.
E.g. MINI/50/TDIG with fan assisted convection and stainless steel interior and fan circulation becomes MINI/50/TDIG/SS/F
Contact sales for bespoke options
Option codes
Fan Assisted Circulation - F
Stainless Steel Chamber - SS
3 Stage Advanced Timer - TIM
10 Menu x 8 Stage Profile Controller with Cyclic feature - TIM/10PRO
Viewing Window - VIS
Double Door (Glass) - DD
Access ports - AP
Audible Warning - AWA
Single Points Calibrations-SPC
3 Point Calibration - 3PC
Temp Uniformity Surveys - TUS
Extraction Systems - EXT
Extended Warranty - X1
Internal Lights - IL
Stands-STANDS
Stacking Kits - STACK
