Stirred Water Baths

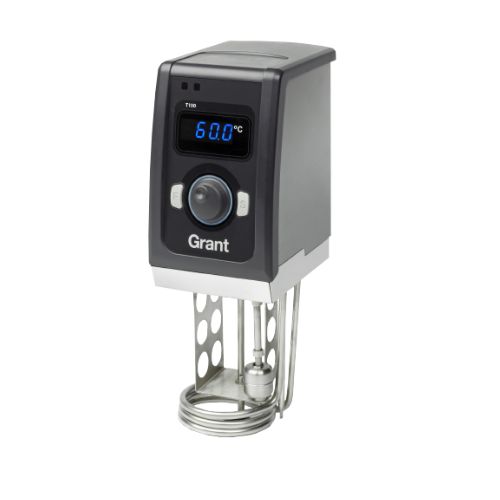

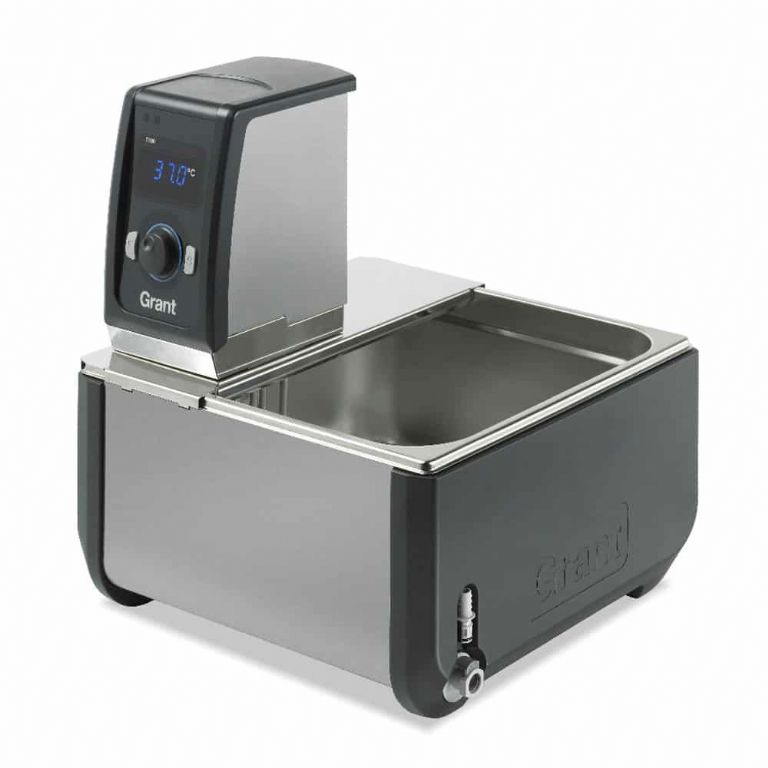

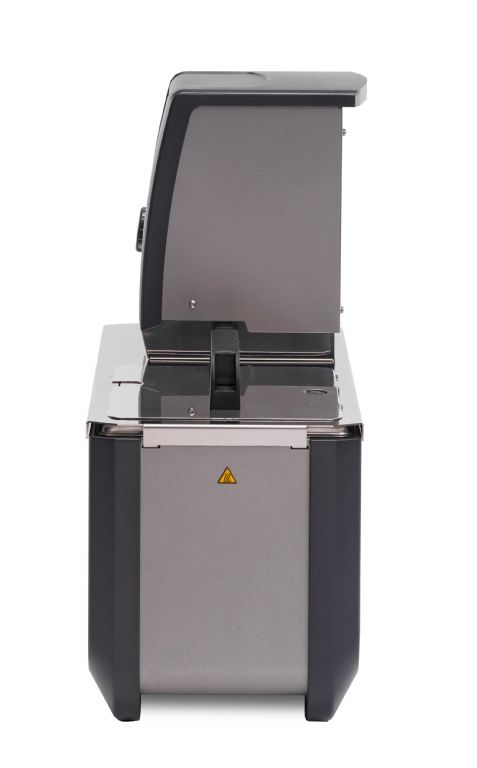

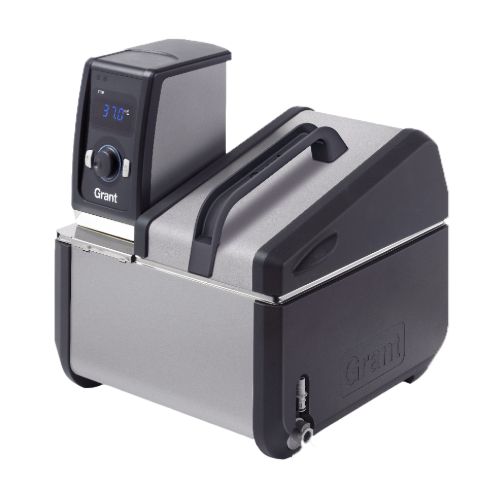

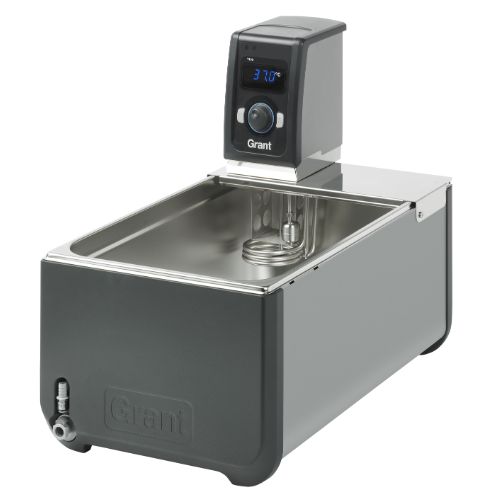

Grant Optima T100 Heated Circulating Bath

The Grant T100 series of general purpose heating circulating baths offer accurate temperate control for straightforward applications in the range of 0°C to 100°C.


About

The T100 heating circulator can be used in combination with any Grant stainless steel or with a T-CLAMP for independent use of virtually any vertical sided tank.

  • Cooling/heating range 0°C to 100°C
  • Cooling achievable with optional immersion cooler (see accessory options)
  • Stability ±0.05ºC / Uniformity  ±0.1ºC
  • Tank options 5L to 38L. Custom options available upon request
  • 3 programmable temperature pre-sets
  • Low liquid protection and fixed over temperature cut-out
  • Visual alarm – alerts you when your attention is required
  • Clear, bright 4 digit LED display
Applications
  • Clinical, Microbiology and Pathology labs – media tempering, thawing and incubating samples
  • Teaching labs, higher education/universities – practical demonstration/experimentation, sample preparation

‍Products in the range

  • T100-ST5 - 5 L
  • T100-ST12 - 12 L
  • T100-ST18 - 18 L
  • T100-ST26 - 26 L
  • T100-ST38 - 38 L

Specifications

Dimensions (h x d x w) 333 x 172 x 120mm
Stability (DIN 12876) @70ºC 0.05±ºC
Uniformity (DIN 12876) @70ºC 0.1±ºC
Setting resolution 0.1ºC
Display 4 digit LED
Timer function
No. of temperature presets 3
Re-calibration points 2
Socket for external probe (TXPEP, TXSEP)
Communications interface
Programmable
Relays
Safety – over temperature Fixed
Fluid level – float
Language options
Alarms (can be configured to switch a relay)
Heater power – 230V 1290W
Heater power – 120V 1440W
Electrical power – 230V 1400 (50-60Hz)
Electrical power – 120V 1500 (50-60Hz)
Height above tank rim 200mm
Depth below tank rim 135mm
Maximum pressure (water)
Maximum flow (water)
Pump connector 6mm bore
Pump connector 9mm bore
Weight 2.1kg

  • optima water bath product range
