HANNA HI-2600 Series Dissolved Oxygen Bench Meter

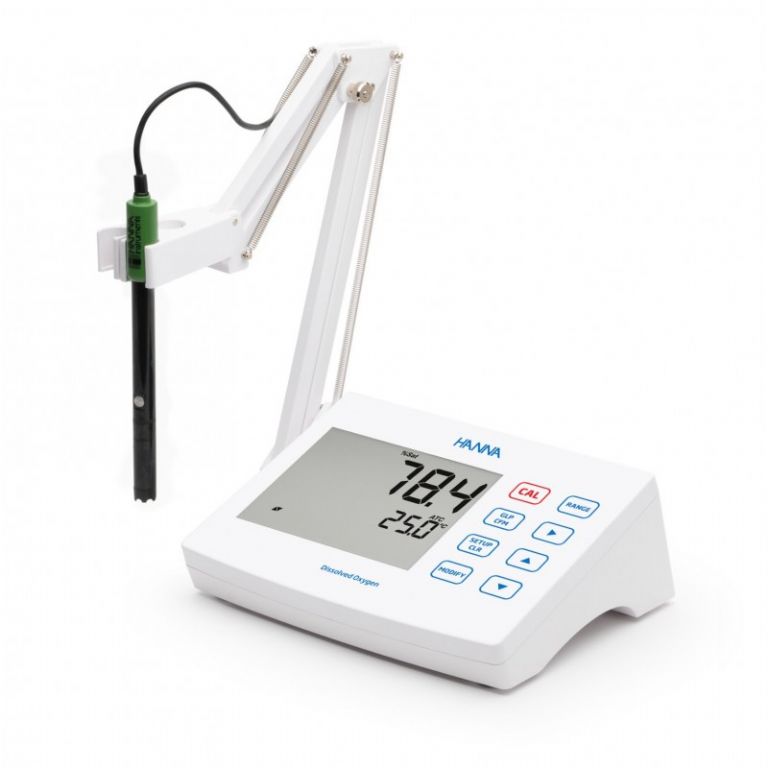

HI-2640 Dissolved Oxygen (DO) Benchtop Meter

The HI-2640 Dissolved Oxygen Benchtop Meter provides fast, accurate measurements of dissolved oxygen (DO) and temperature using the Hanna Instruments HI-764080 digital DO electrode/probe. Each digital probe features a unique serial number, allowing the meter to automatically recognize the parameter being measured, simplifying setup and reducing errors.

The HI-2640 measures dissolved oxygen in ppm and % saturation, making it ideal for laboratories, research facilities, educational environments, and industrial applications. Its intuitive design streamlines configuration, calibration, and measurement, ensuring reliable and repeatable results.

Featuring a large 5.5” (14 cm) LCD display with capacitive touch keys and a 130° wide viewing angle, the HI-2640 offers clear visibility and user-friendly operation, even in busy laboratory environments.

Key Features

Measures Dissolved Oxygen (DO) in ppm and % saturation
Measures Temperature simultaneously
Hanna digital DO electrode with automatic parameter recognition
Intuitive configuration and calibration
Large 5.5” LCD display with capacitive keys and 130° viewing angle

issolved Oxygen - using HI-764080 DO Probe
DO Range		0.00 to 45.00 PPM (mg/L); 0.0 to 300.0% saturation
Resolution		0.01 ppm (mg/L); 0.1% saturation
Accuracy		±1.5% of reading (± 1 digit)
Calibration		one or two point at 0% (HI-7040L solution) and 100% (water-saturated air)
Pressure Compensation		Automatic 450.0 to 850.0 mmHg (0.1 mmHg resolution)
Salinity Compensation		0 to 40 g/L (1g/L resolution)
Temperature Compensation		0.0 to 50.0°C)

Temperature
Temperature Range		-20.0 to 120.0 °C – temp limits reduced to probe limits
Resolution		0.1°C
Accuracy		±0.5°C

Additional Specifications
Probe		HI-764080 digital dissolved oxygen electrode with 3.5mm connector and 1m cable (included)
PC Interface		USB-C
Storage Interface		USB-C
Power supply		USB Type C (5 VDC; 500mA)
Environment		0 to 50°C; Maximum 95% RH non-condensing
Dimensions		205 x 160 x 77 mm
Weight		Approximately 0.85 kg
