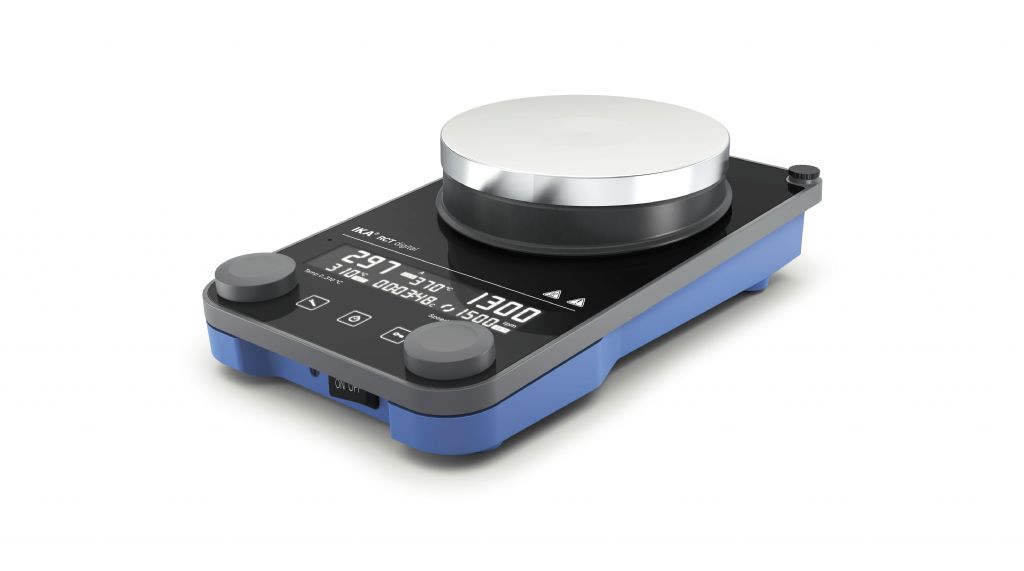

IKA Plate (RCT digital)

The IKA Plate (RCT digital) has a round top made of aluminum alloy. It stirs volumes of up to 20l (H2o) and runs at speeds ranging from 50-1500rpm.

Some of the features are: IKA emphasizes ease-of-use by design simplicity: reduced forms and operating elements meet the modernity of smartphones: IKA not only focuses on hardened glass because of visibility, chemical resistance and safety, it also optically changes the game of a magnetic stirrer with a glass surface. The IKA Plate (RCT digital) improves over time with regular firmware updates. Using Alnico magnetic technology, the IKA Plate (RCT digital) achieves excellent temperature stability and high residual induction. It also provides for maximum vortex.  The integrated timer and counter function supports the control of kinetics and sensitive reactions; the IKA SmartTemp® function protects users intelligently and predictably.

Automatic switch-off of the magnetic stirrer if the connected external temperature sensor is not immersed in the medium. Function selectable, timeout time adjustable (Error 5).

PT 1000.60 temperature sensor included in the scope of delivery.




Technical Data

Number of stirring positions        1

Stirring quantity max. per stirring position (H2O) 20 l

Maximum load  25 kg

Motor rating output        9 W

Direction of rotation       right / left

Speed display set-value  LCD

Speed display actual-value            LCD

Speed adjustment           Turning knob

Speed range       50 - 1500 rpm

Setting accuracy speed   10 rpm

Stirring bar length            20 - 80 mm

Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h)      +17 K

Heat output       600 W

Temperature display set-value     LCD

Temperature display actual-value               LCD

Temperature unit             °C / °F

Heating temperature range          Room temp. + device self heating - 310 °C

Heat control       Turning knob

Temperature setting range            0 - 310 °C

Temperature setting resolution of heating plate  1 K

Connection for ext. temperature sensor PT1000, ETS-D5, ETS-D6

Temperature setting resolution of medium            1 K

Adjustable safety circuit 50 - 370 °C

Set-up plate material       Aluminium alloy

Set-up plate dimensions Ø 135 mm

Automatic reverse rotation          yes

Intermittent mode           yes

Viscosity trend measurement      yes

Timer     yes

Timer display     LCD

Time setting min.              1 s

Time setting max.             143940 min

Sensor in medium detection        yes

Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C)   ±2 %

Heating rate (1l H2O in H1500)  6.5 K/min

Heat control accuracy of heating plate (at 100°C)               ±5 K

Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C)       ±0.5 K

Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) ±0.5 K

Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) ±0.2 K

Dimensions (W x H x D)  160 x 85 x 270 mm

Weight  2.4 kg

Permissible ambient temperature             5 - 40 °C

Permissible relative humidity      80 %

Protection class according to DIN EN 60529          IP 42

RS 232 interface                yes

USB interface      USB-B

Voltage 220 - 230 V

Frequency           50/60 Hz

Power input        650 W

Power input standby      1.6 W
