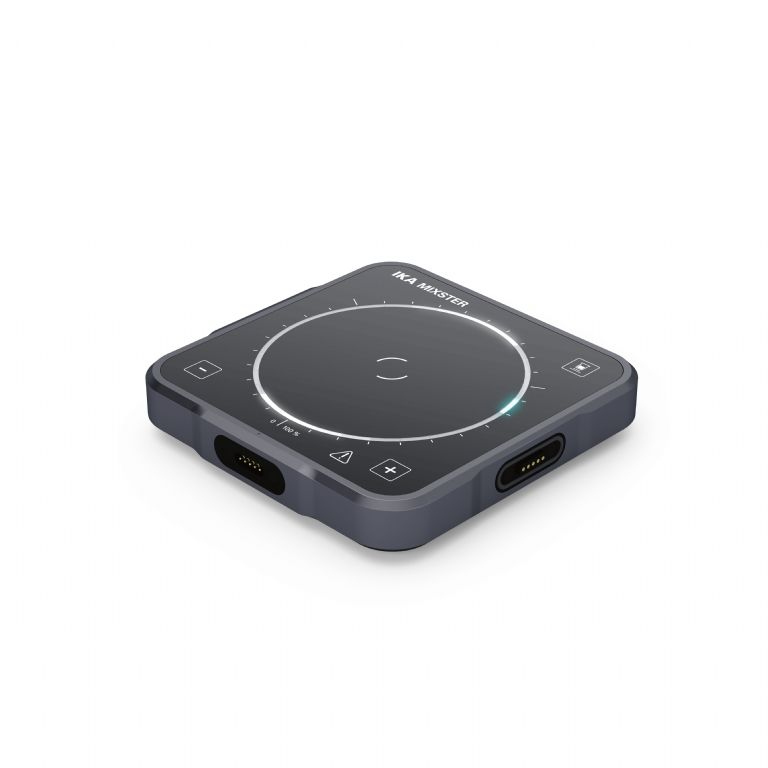

IKA MIXSTER – Universal Magnetic Stirrer with Magnetic Drive
The IKA MIXSTER is a compact, high-performance magnetic stirrer and mixing device designed for modern laboratories. Available in sets of up to four units, the IKA MIXSTER SET 1 includes one powerful drive unit, making it the ideal solution for efficient and flexible lab mixing applications.
Powerful Single-Position Magnetic Stirrer
In its standard configuration, the IKA MIXSTER operates as a single-position magnetic stirrer capable of:
Its advanced magnetic drive technology delivers exceptional stirring performance, producing strong mixing effects and achieving homogeneous results in minimal time.

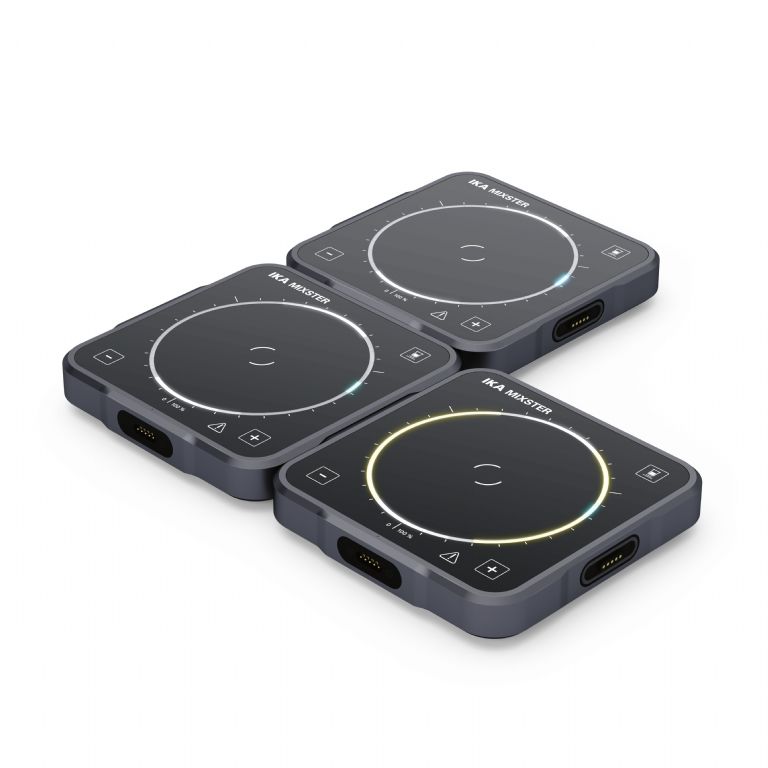

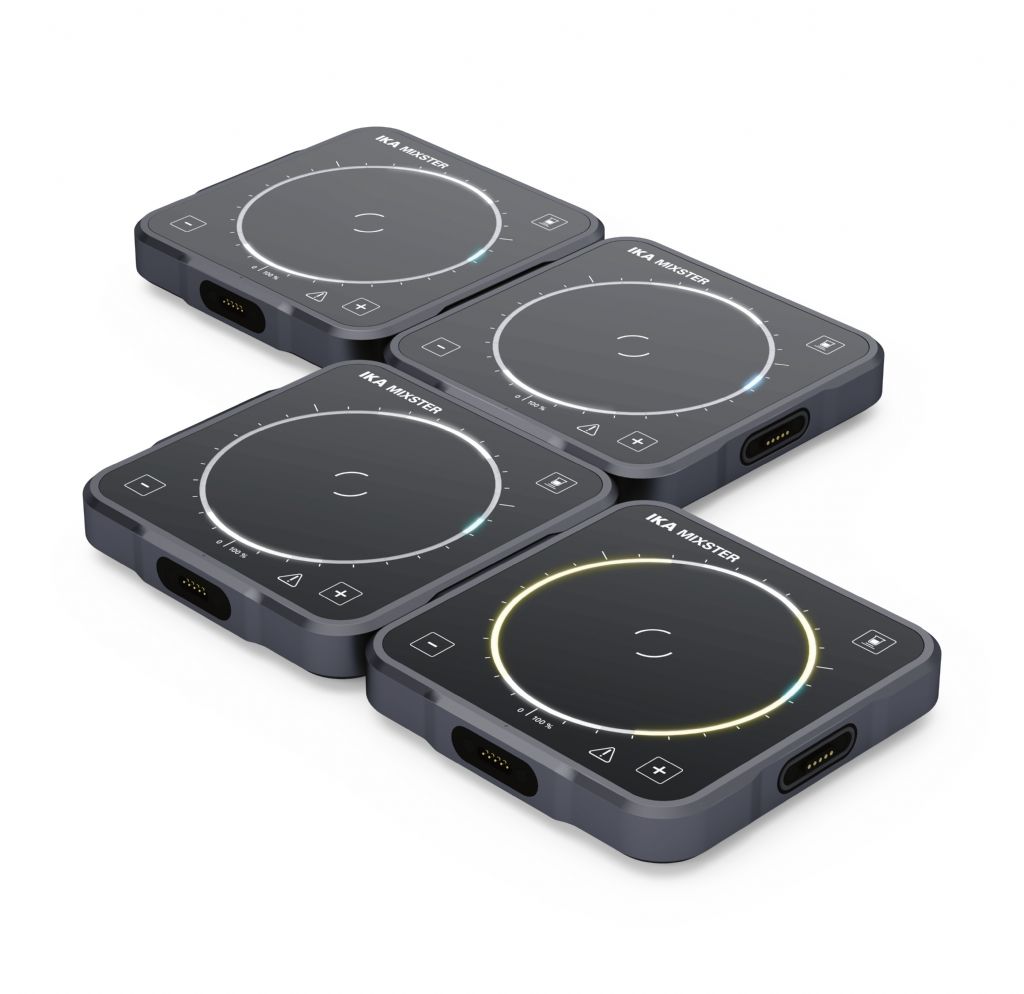

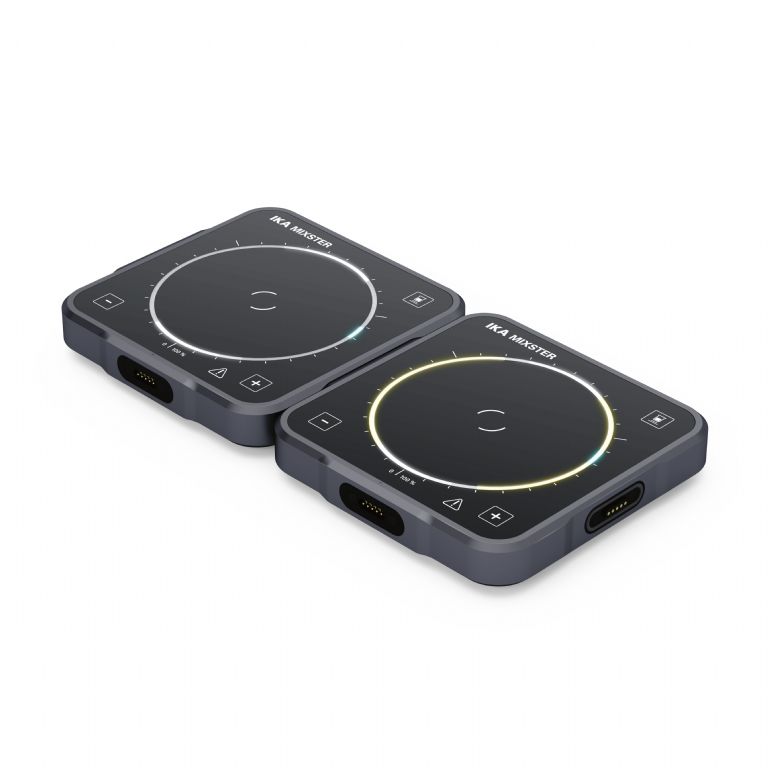

Expandable to Multi-Position Magnetic Stirrer (Up to 30 Positions)
Need higher throughput? The IKA MIXSTER can be expanded into a multi-position magnetic stirrer by connecting additional stirring units (accessory ID no. 0020112621). Scale your setup up to 30 stirring positions.
Control options include:
Note: A different power supply may be required depending on the number of connected units. The included power supply supports up to two devices.
Versatile Accessories for Enhanced Lab Applications
MIX.IX Multi-Position Attachment
Transforms the drive into a 9-position magnetic stirrer for small-volume vessels (8–60 ml), ideal for parallel sample processing.
MIX.VX Shaker Attachment
Converts the magnetic drive into a vortex shaker or orbital shaker, enabling fast twisting and orbital mixing for diverse laboratory workflows.
Innovative 360° LED Glass Display & Smart Operation
The IKA MIXSTER introduces an intuitive interaction concept with a chemically resistant 360° LED glass display. All operational data is clearly communicated without traditional alphanumeric displays.
Features include:
-
Display of speed or power consumption
-
Real-time viscosity monitoring (percentage display)
-
Touch or beaker-activated start (integrated beaker recognition)
-
Push-button operation
-
Reverse rotation function with adjustable time intervals for improved mixing of difficult samples
Durable, Safe & Award-Winning Design
Built for demanding environments, the IKA MIXSTER features:
-
IP66 protection class for operation under harsh conditions
-
Easy cleaning under running water
-
Safe use in incubators up to 40°C
-
Compact, space-saving design for laboratories with limited bench space
The innovative design has been recognized with the reddot Award 2022, highlighting its functionality and modern aesthetics.
Scope of Delivery
-
IKA MIXSTER stirring unit
-
Power supply (supports up to two devices)
-
IKAFLON® 25 magnetic stirring bar
Technical Data
Number of stirring positions 1
Stirring quantity min. per stirring position (H2O) 0.005 l
Stirring quantity max. per stirring position (H2O) 5 l
Maximum load 7.5 kg
Motor rating output 5 W
Direction of rotation right / left
Speed display set-value LED
Speed display actual-value LED
Speed adjustment Touch key
Speed range 100 - 3000 rpm
Setting accuracy speed 100 rpm
Stirring bar length 10 - 30 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) +6 K
Set-up plate material glass
Set-up plate dimensions 124 x 124 mm
Automatic reverse rotation yes
Intermittent mode 6sec - 30min
Viscosity trend measurement yes
Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) ±2 %
Modular expandable stirring system (2-30 units) yes
Leader- follower operation (minimum 2 units required, leader unit controls synchronously follower unit) yes
Vessel detection (optional activated/deactivated) yes
Dimensions (W x H x D) 135 x 24 x 135 mm
Weight 0.6 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 66
USB interface optional
Voltage 100 - 240 V
Frequency 50/60 Hz
Power input 10 W
Power input standby 2 W
DC Voltage 24 V=
Current consumption 400 mA
