MATRIX Orbital

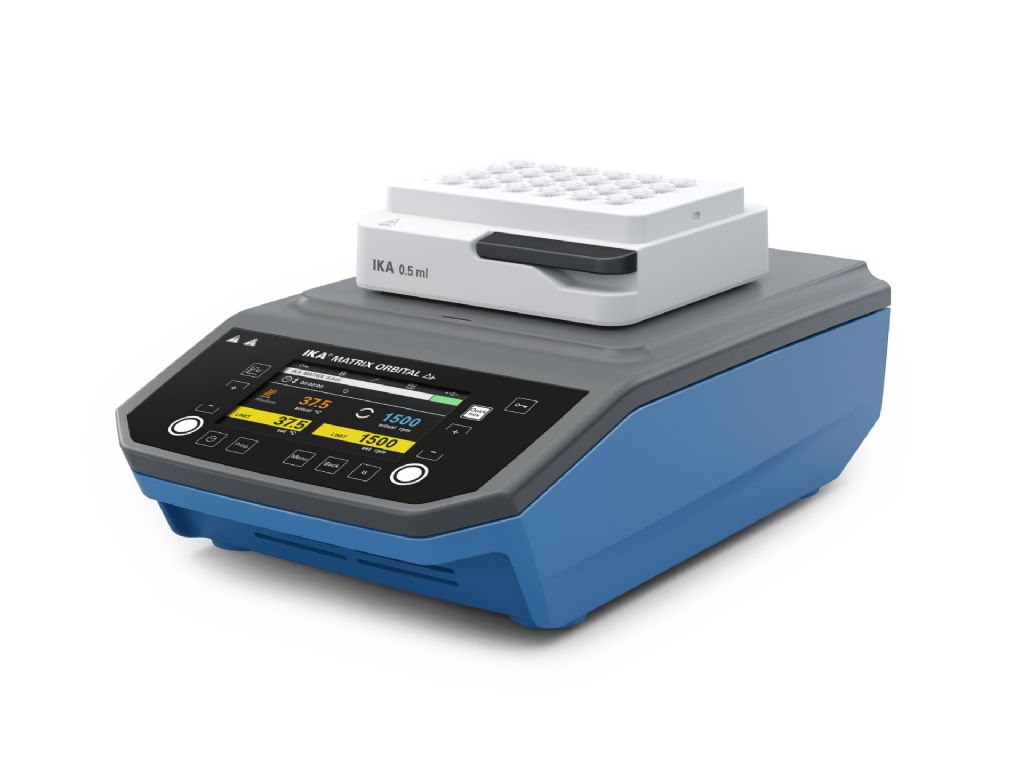

The IKA Matrix Orbital is part of a new and powerful product family of thermoshakers available. IKA Matrix Orbital mixes and is suitable for variable inserts. Whether its blood samples, pharmaceutical agents, DNA/RNA samples or ELISA assays – samples with even the smallest volumes mix reliably and completely in all laboratory applications. No cross-contamination and an optimal mixing result.

In addition, IKA Matrix Orbital comes with numerous user-friendly features:

• Large and clear display with a convenient menu structure allows for intuitive operation
• Speeds of up to 3,000 rpm and shaker diameter of 3 mm ensure the liquid mixes quickly and effectively
• Speed adjustment according to insert, attachment and filling volume
• Aluminum die cast housing ensures secure positioning, excellent stability and everyday robustness

Technical Data

Type of movement - orbital

Shaking stroke   3 mm

Maximum load  0.3 kg

Permissible ON time        100 %

Speed min (adjustable)  300 rpm

Speed range       0 - 3000 rpm

Speed display     TFT

Speed deviation ±30 rpm

Speed adjustment           10 RPM Steps

Timer     yes

Timer display     TFT

Time setting min.              1 s

Time setting max.             6000 min

Operating mode               timer and continuous operation

Working with microtiter plates   yes

Number of reaction vessels          24x 0.5 ml / 24x 1.5 ml / 24x 2.0 ml

Number of PCR plates    1

Number of Deep Well Plates (DWP)          1

Dimensions (W x H x D)  200 x 120 x 320 mm

Weight  7.2 kg

Permissible ambient temperature             5 - 40 °C

Permissible relative humidity      80 %

Protection class according to DIN EN 60529          IP 21

RS 232 interface                yes

USB interface      USB-B

Voltage 100 - 240 V

Frequency           50/60 Hz

Power input        80 W

Power input max.             80 W

Fuse       2x T4A 250V
