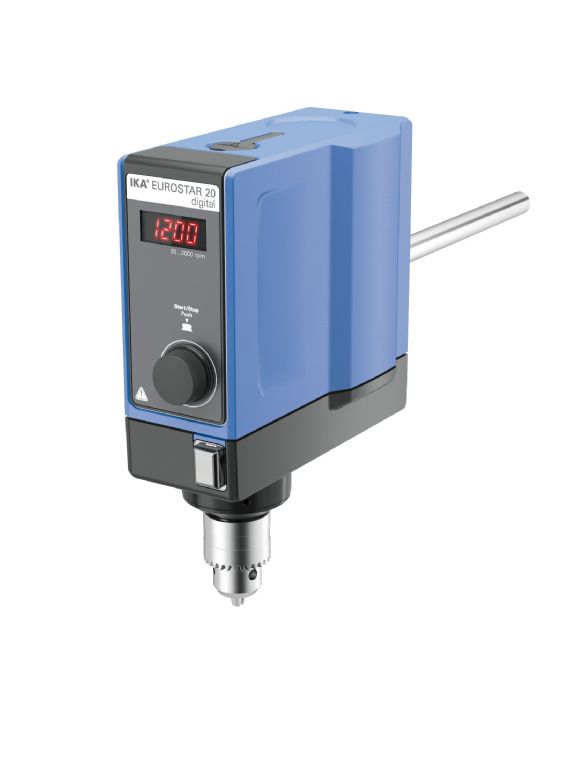

EUROSTAR 20 digital
Laboratory stirrer designed for simple stirring tasks for quantities up to 15 l (H2O). It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/30 - 2000 rpm. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample. Accessories available on request.
- Digital speed display
- Infinitely adjustable speed
- Push-through agitator shafts
- Overload protection
- Short-term overload operation
- Slim casing
- Quiet operation
- Error code display
Scope of delivery
EUROSTAR 20 digital
Chuck key
Technical Data
Stirring quantity max. per stirring position (H2O) 15 l
Motor rating input 70 W
Motor rating output 42 W
Motor principle Brushless DC
Speed display LED
Speed range 0/30 - 2000 rpm
Viscosity max. 10000 mPas
Output max. at stirring shaft 42 W
Permissible ON time 100 %
Torque max. at stirring shaft 20 Ncm
Speed adjustment stepless
Setting accuracy speed ±1 rpm
Deviation of speed measurement n > 300rpm ±1 %
Deviation of speed measurement n < 300rpm ±3 rpm
Stirring element fastening chuck
Chuck range diameter 0.5 - 10 mm
Hollow shaft, inner diameter 11 mm
Hollow shaft (push-through - when stopped) yes
Fastening on stand extension arm
Extension arm diameter 16 mm
Extension arm length 220 mm
Speed control electronic
Nominal torque 0.2 Nm
Housing material alu-cast coating / thermoplastic polymer
Dimensions (W x H x D) 86 x 248 x 208 mm
Weight 4.4 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 42
Voltage 230 V
Frequency 50/60 Hz
Power input 70 W
