High-performance dispersing instrument for volumes from 1 – 2000 ml (H2O) with digital speed display. It offers a wide speed range from 3000 – 25,000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements adds versatility. Applications ranges from homogenizing waste water samples, use in laboratory reactors, dispersion tasks under vacuum / pressure and sample preparation in medical research.
- Digital speed display
- Electronic speed control
- Electronic overload protection
- Stainless steel dispersing elements can be cleaned quickly and easily
- Plastic disposable dispersing elements are available in two sizes
- Error code display
- Quiet operation
The dispersing tool is not included in the scope of delivery.
Scope of delivery

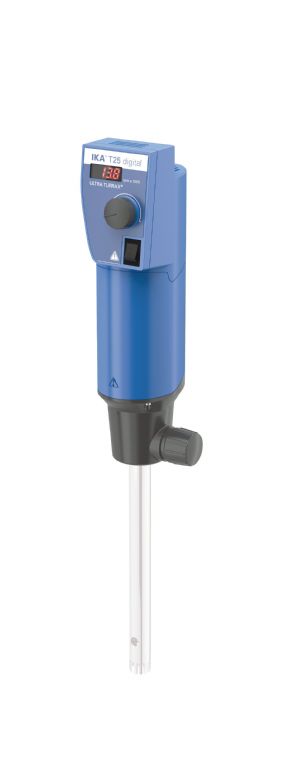

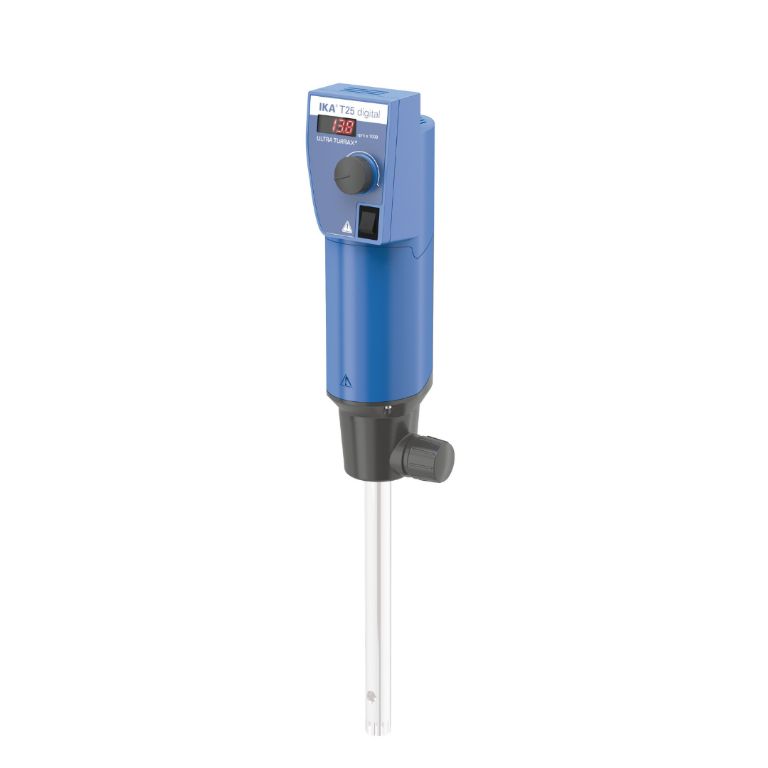

T 25 digital ULTRA-TURRAX®
Technical Data
Motor rating input 700 W
Motor rating output 500 W
Volume range (H2O) 0.001 - 2 l
Viscosity max. 5000 mPas
Speed range 3000 - 25000 rpm
Speed deviation 1 %
Speed display LED
Speed adjustment stepless
Noise without element 75 dB(A)
Extension arm diameter 13 mm
Extension arm length 160 mm
Process type batch
Permissible ON time 100 %
Dimensions (W x H x D) 87 x 271 x 106 mm
Weight 2.5 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 20
Voltage 220 - 240 V
Frequency 50/60 Hz
Power input 800 W
