Vacuum Ovens

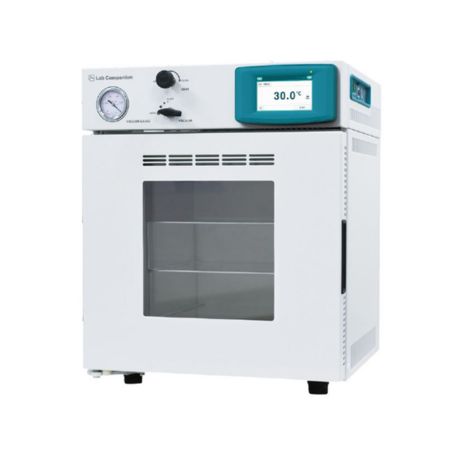

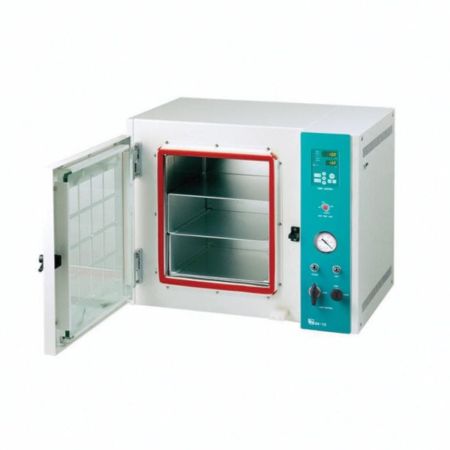

Jeio Tech Vacuum Oven

Jeio Tech Vacuum Oven

Jeio Tech's vacuum oven with a temperature range of up to 250°C, the OV4 Series Vacuum Ovens are suitable for various test applications (e.g. agricultural genetics, drying of plant tissue, drug metabolism) and optimally constructed to separate solvents from solutions or dry solvents with high boiling points.

• Temperature variation up to ±1.5°C at 100°C according to DIN 12880:2007standards
• Outer surfaces remain safe to touch even whilst operating at the highest temperature, preventing possible burns when viewing samples via the inspection window
• 5inch color touch display for intuitive operation
• Wide temperature range that can be controlled up to 250°C
• 3-point temperature calibration improves temperature accuracy in the entire area.
• Monitor and control via mobile app anytime, anywhere via LC Connected. (mobile monitoring system) – Optional
• Polycarbonate safety cover provided to protect a user in case of tempered glass breakage

  AAH13325K AAH13315K
Chamber Volume (L) 65 28
Vacuum Range (MPa)  0 to 0.1 0 to 0.1
No. of Shelves (standard / max) 2/3 2/3
Maximum load per shelf (Kg) 20 20
Temperature Range (°C)  Amb. +15 to 250 Amb. +15 to 250
Fluctuation at 100°C   ± 0.3  ± 0.1
Variation at 100°C ± 1.5
Internal Dimensions (W x D x H) mm 402 x 405 x 402 302 x 305 x 302
External Dimensions (W x D x H) mm 636 x 622 x 755 537 x 522 x 655
Net Weight (Kg) 110 69
  • jeio tech ov4 vacuum ovens medline scientific premier scientific
