Boiling Baths

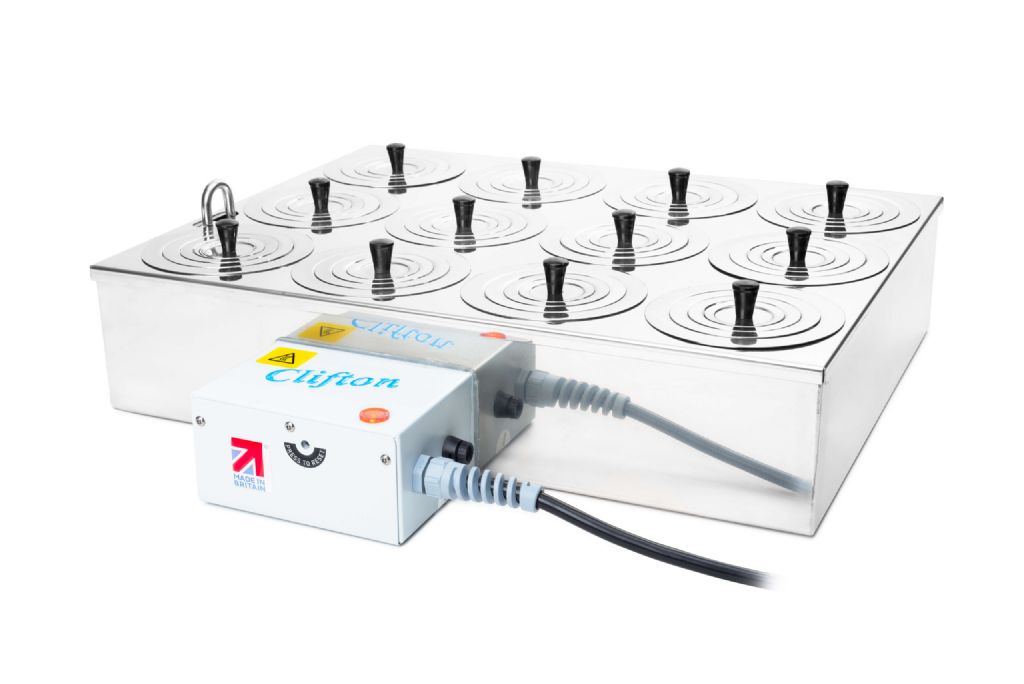

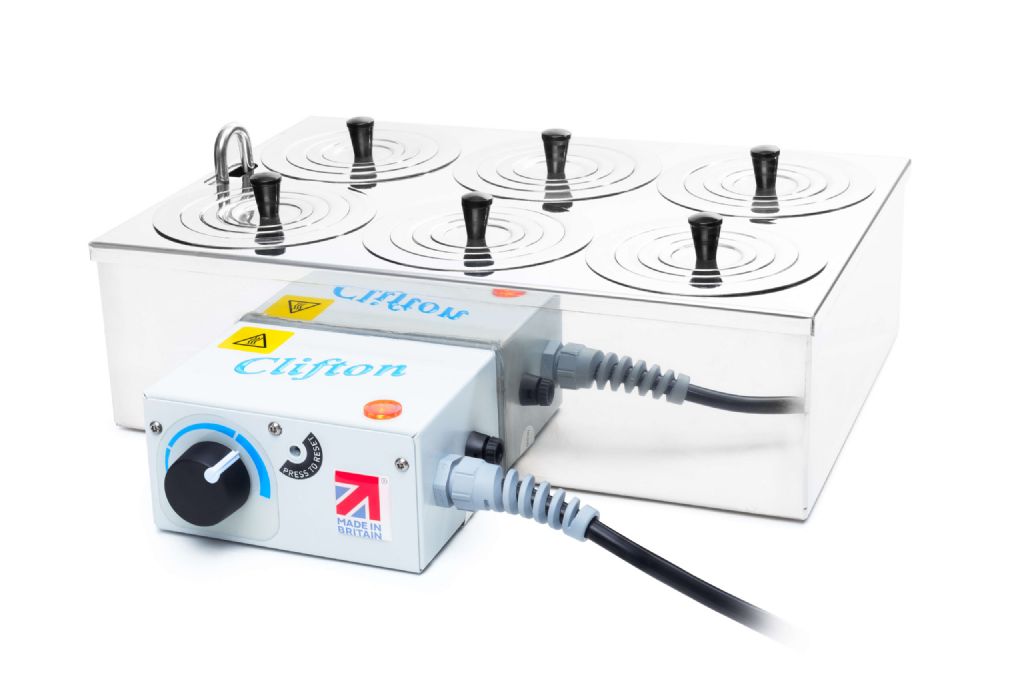

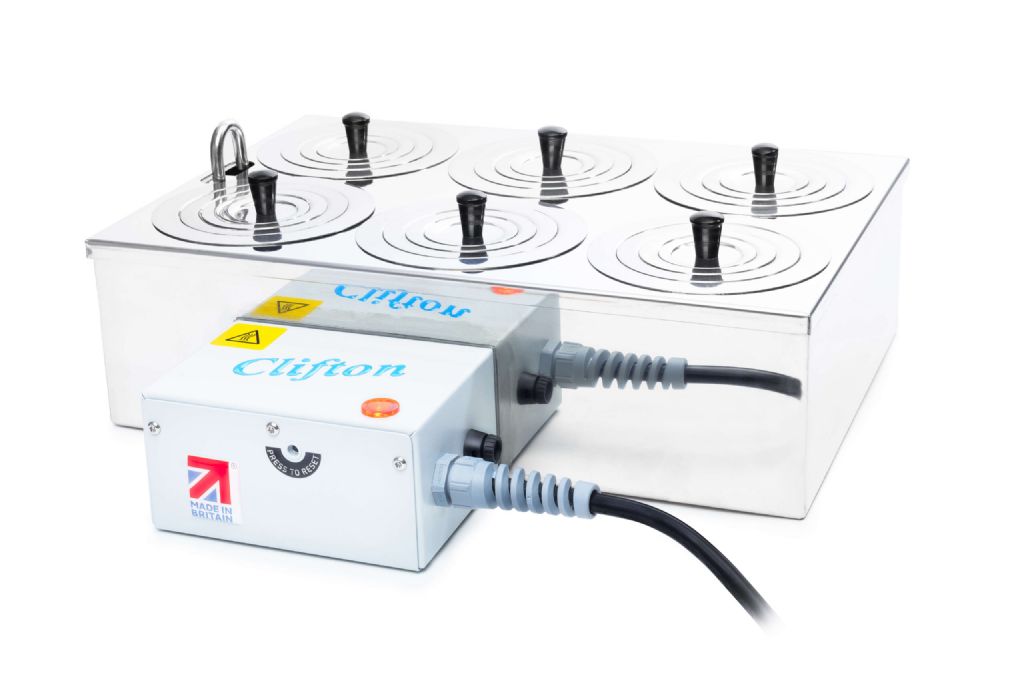

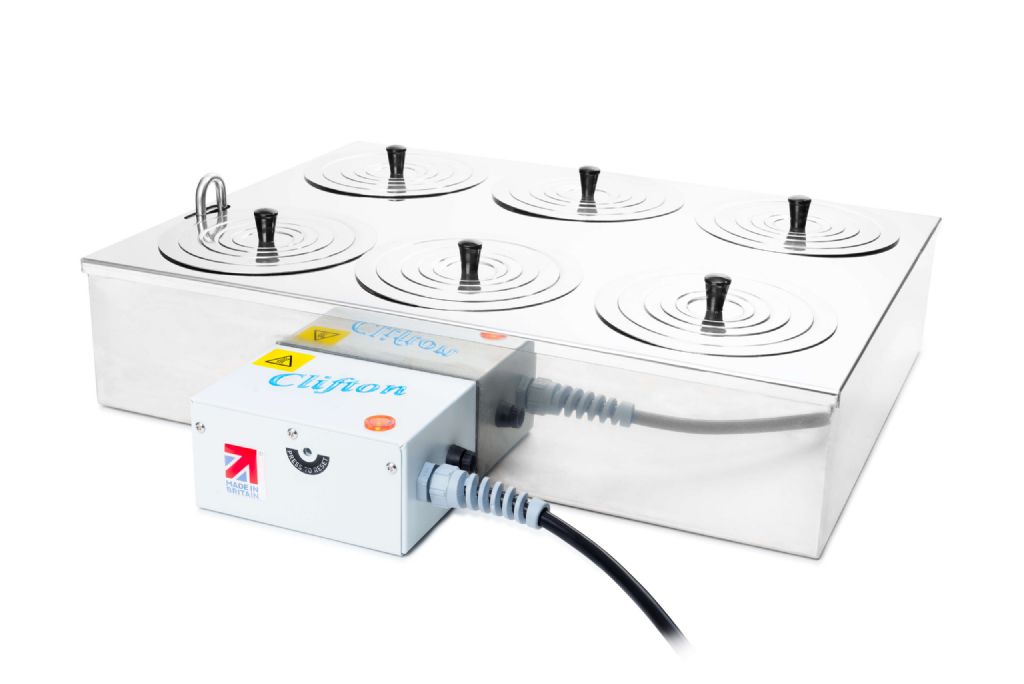

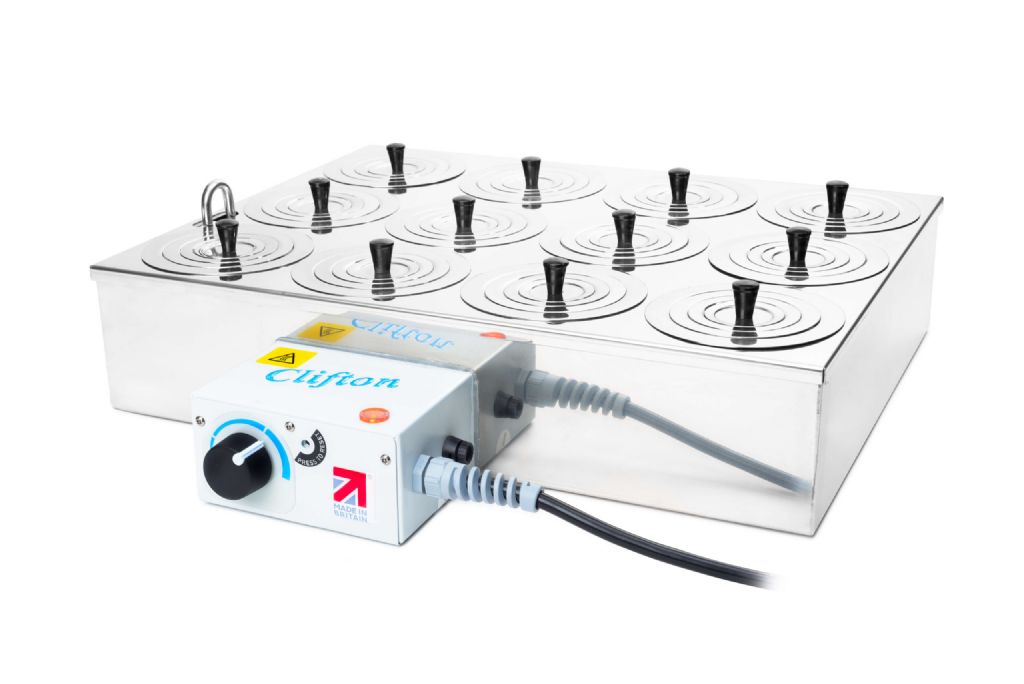

Nickel-Electro Clifton 1100 Series Rectangular Boiling Baths

Rectangular boiling baths available in a choice of aluminium or stainless steel are both electrically heated. The multi-place boiling bath regulates from a gentle simmer to a vigorous boil and is fitted with concentric ringed lid, to vary the hole size.

E-Range – The bath provides constant boiling water for gentle heating of samples.

ER-Range – Features a built-in energy regulator, which controls the amount of boiling in a bath from a gentle simmer to a vigorous boil.

The steam produced provides an effective source of heat for samples:

That may be otherwise thermally damaged by a naked flame.
Used for applications to distil/concentrate liquids, melt agar and other solids.
Metallurgical analysis, protein analysis and bacteriological examinations.
The 1100 Series comes with a 2 year warranty as standard, we also offer free advice and support for our baths

Nickel-Electro Ltd belongs to the Made In Britain association. The symbol on the company’s products gives customers an assurance of quality.

Product Code 1101E 1101ER 1102E 1104E 1104ER 1105E 1105ER
Chamber Capacity 4.5 Litres 8.8 Litres 5 Litres
Temperature Range Boiling at 100°C Simmer to boiling at 100°C Boiling at 100°C Simmer to boiling at 100°C Boiling at 100°C Simmer to boiling at 100°C
Temperature Control Constant boiling no control Energy regulator which controls the amount of boiling from a gentle simmer to vigorous boil Constant boiling no control. Energy regulator which controls the amount of boiling from a gentle simmer to vigorous boil Constant boiling no control Energy regulator which controls the amount of boiling from a gentle simmer to vigorous boil
Material Stainless Steel Aluminium
Heater Indicator This indicates ON = heating, off safety cut out has fired
Heater Power (220-240V) 1000W
Lid Fitted Y
Voltage 230V models 50-60Hz
Dimensions
External (mm) 321w x 219d x 90h 425w x 321d x 90h 400w x 200d x 90h
No. of Holes & Diameter (mm) 6 holes x 80mm diameter 6 holes x 101mm diameter 12 holes x 80mm diameter 6 holes x 80mm diameter
