Unstirred Water Baths

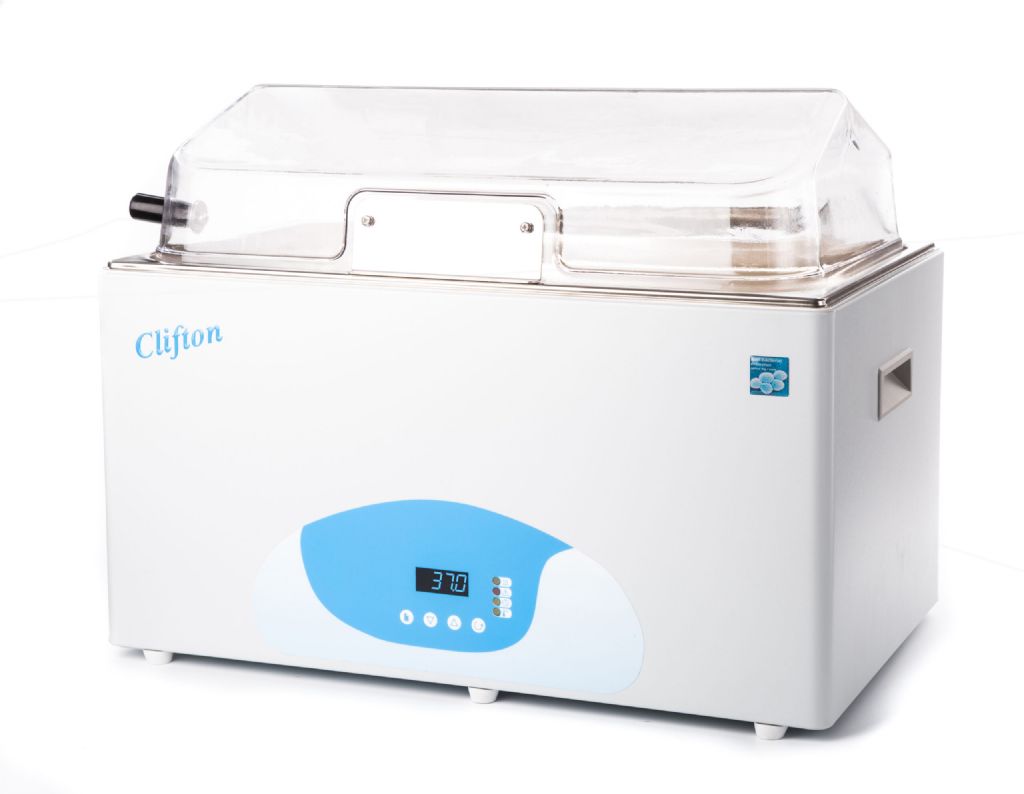

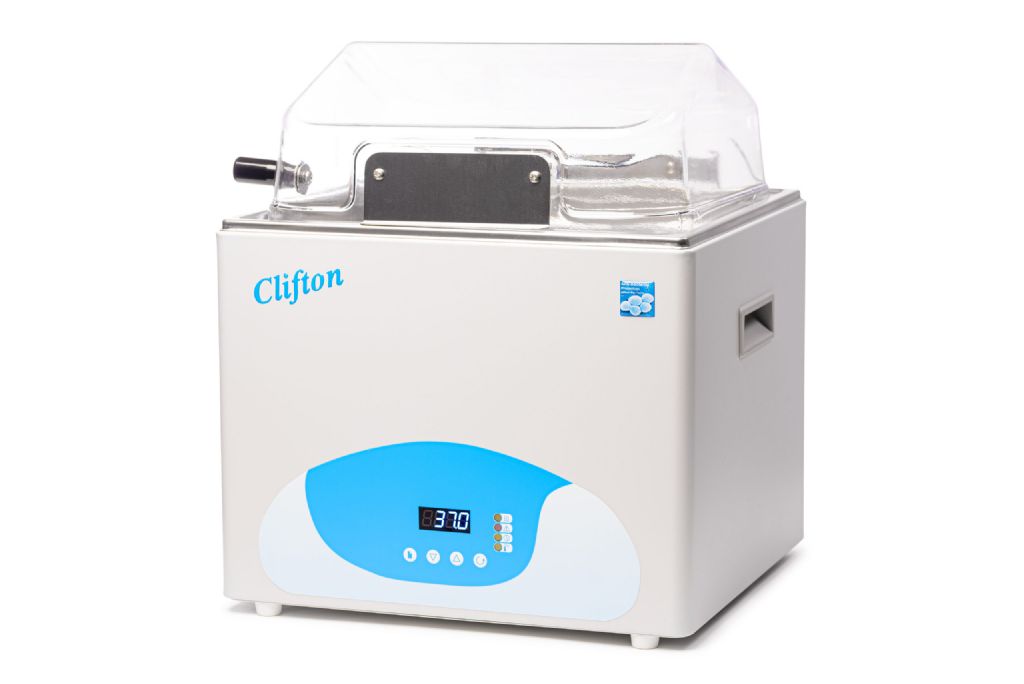

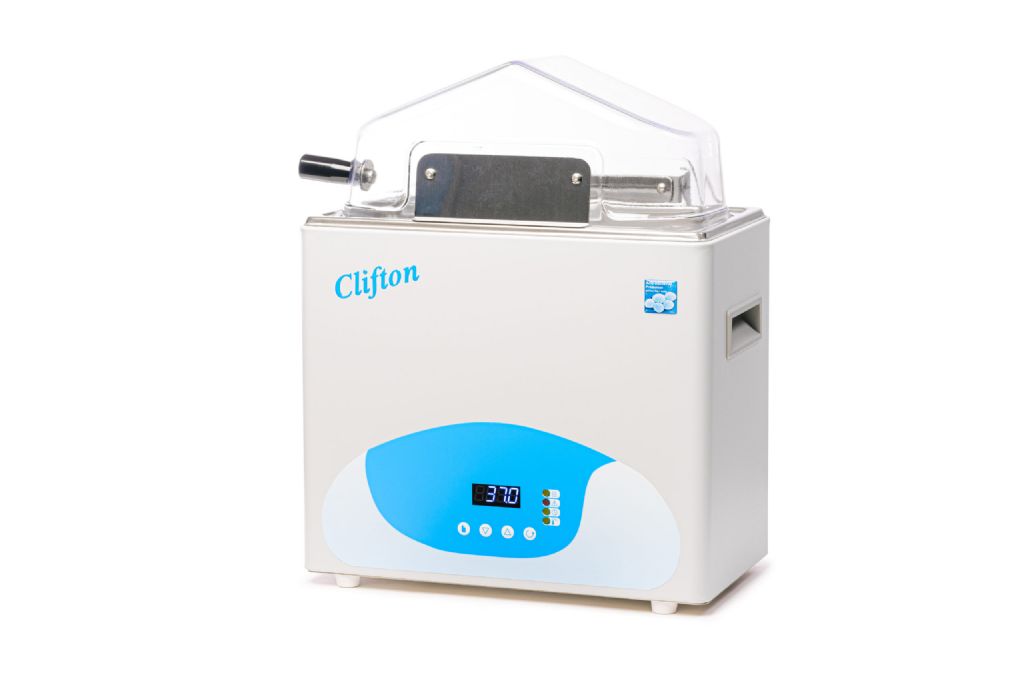

Nickel-Electro Clifton NE3DT Pro Digital Water Baths

The NE3DT pro digital water baths feature precision temperature control with an option to enable a run back or delay start timer, the latter useful for pre-conditioning water temperature before use. Controls feature auto alarm setting, illuminated on/off switch, heater and over temperature indications.

Supplied with clear hinged lid,* convenient to use, all condensate runs back into the bath in either open or closed positions. Also features a durable gated drain tap** designed to quickly empty the water bath, painted antibacterial surfaces and touch flush fitting controls, with illuminated LED display for temperature and time values.

*except NE3-56DT

**except NE3-4DT





Quality Build
Comprising of a high quality corrosion resistant stainless steel tank, with a bright clean finish housed in a durable paint finished outer case. Painted surfaces feature anti-bacterial finish, hygienic coating which actively inhibits bacterial growth, with good chemical resistance.


Polycarbonate Lid
Supplied with clear hinged polycarbonate lid. Please note that the 56 litre is not supplied with lid.

Side Handles
Featuring side lifting handles for ease of transportation.

Temperature Alarm
Over temperature alarm is automatically set 4°C above set point.

Timer
Indicator and end message variable, 00:01 to 99:59 [hh:mm], activates at set temperature.

Temperature Control
PID Digital, LED display showing actual or set temperature, resolution 0.1°C

Temperature Range
Ambient +5°C - 100°C

Drain Tap
Supplied with drain tap on NE3DT baths 8 litres and above.

Sensitivity/Uniformity
±0.2°C/±0.1°C

Perforated Shelf
Supplied with a removable sturdy low height stainless steel perforated shelf, providing a taller volume of water, for standing containers and accessory test tube racks in the bath.

Nickel-Electro Ltd belongs to the Made In Britain association. The symbol on the company’s products gives customers an assurance of quality.

Product Code NE3-4DT NE3-8DT NE3-14DT NE3-28DT NE3-56DT
Chamber Capacity 4 Litres 8 Litres 14 Litres 28 Litres 56 Litres
Temperature Range Ambient + 5°C - 100°C
Temperature Control PID Digital, LED display showing actual or set temperature, resolution 0.1°C
Temperature Alarm Over temperature alarm is automatically set 4°C above set point
Temperature Control and run back timer Indicator and end message
Temperature Control and delay start timer timer Heating commences at a set time in future
Sensitivity ±0.2°C
Uniformity ±0.1°C
Heater Power (220-240V) 400W 800W 1000W 1500W 2500W
Voltage 120V or 230V models available 50-60Hz
Drain Tap Fitted N Y
Lid Fitted Y N
Dimensions
External (mm) 332w x 185d x 290h 332d x 270d x 290h 361w x 332d x 290h 538w x 332d x 290h 660w x 540d x 290h
Internal (mm) 300w x 150d x 150h 300w x 240d x 150h 325w x 300d x 150h 500w x 300d x 200h 620w x 500d x 200h
Water Level Max. (mm) 130 180
Max Depth Above False Base (mm) 115 165
Water Level Min. (mm) 55
