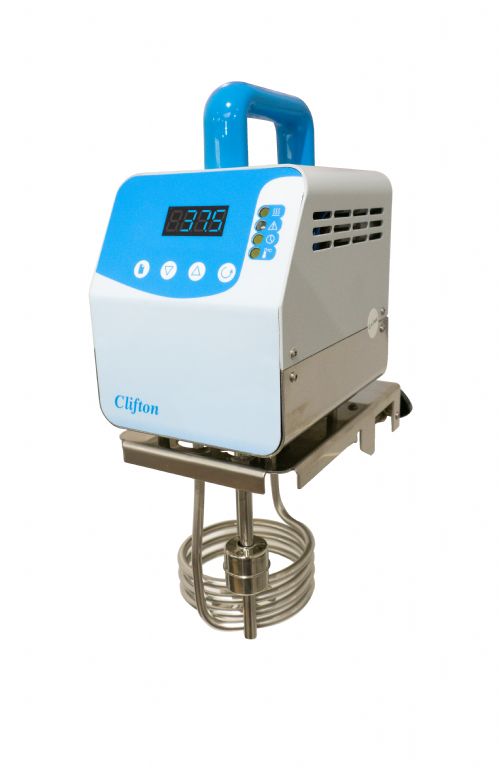

Nickel-Electro Clifton NE4-SB Universal Heated Thermostirrer

Temperature Range : Ambient +5°C - 99°C

Clifton NE4-SB features a digital PID temperature controller which provides even water circulation and temperature stability. Designed to be fully compatible and easy to fit onto an array of tanks and vessels (rectangular or circular) with a diameter 30cm or more.

Featuring a low-level float device, which ensures heating is switched off if the liquid falls below the recommended level.

Painted surfaces feature “anti-bacterial technology” which inhibits bacterial growth, improving hygiene requirements as demanded by clinical and laboratory environments.

Before leaving our factory every water bath is identified with a unique serial number and undergoes a factory calibration adjusting control to known traceable value. Electrically tested for safety at final inspection and a test certificate enclosed in rear of the instruction book.

Temperature Range

Ambient +5°C - 99°C

Temperature Alarm

Under/over temperature alarm is automatically set 4°C above and 4°C below set point.

Temperature Control

PID Digital, LED display showing actual or set temperature, resolution 0.1°C

Timer

Timer setting variable in 1-minute increments from 00:01 [hh:mm] to 99:59 [hh:mm] with “end” message on completion of the timed period.

Quality Build

Durable paint finished outer case. Painted surfaces feature anti-bacterial finish, hygienic coating which actively inhibits bacterial growth, with good chemical resistance.

Tank Mounting

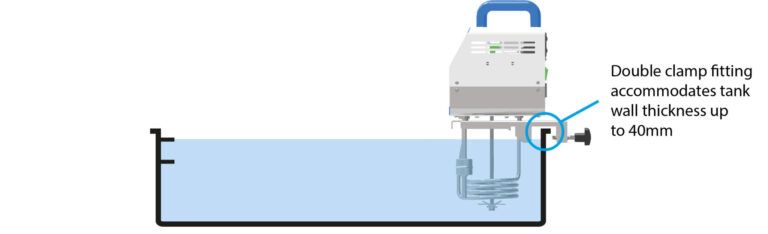

Double clamp fitting accommodates tank max wall thickness 40mm

Sensitivity

±0.05°C

Safety Features

Features a low liquid level float switch, which ensures heating, is switched off if the liquid falls below the recommended level – display will show “FiLL”. Heating is switched off but stirring continues. To reset carefully top up the liquid to the recommended level.

The under/over temperature alarm is automatically set 4°C above and 4°C below set temperature. When in alarm condition the indicator illuminates and actual bath temperature is shown. If bath is over temperature both heating and stirring are switched off. Once liquid temperature has fallen or risen above/below the alarm setting, the indicator clears and actual bath temperature is shown.

The NE4-SB comes with a 3 year warranty as standard, we also offer free advice and support for our baths. Nickel-Electro Ltd belongs to the Made In Britain association. The symbol on the company’s products gives customers an assurance of quality.

Product Code	NE4-SB
Max Tank Capacity	60 Litres
Temperature Range	Ambient + 5°C - 99°C
Temperature Control	PID Digital, LED display showing actual or set temperature, resolution 0.1°C
Temperature Alarm	Under/over temperature alarm is automatically set 4°C above and 4°C below set point
Sensitivity	±0.05°C
Timer	Visual indicator and audible end message - variable 00:01 to 99:59 hh:mm
Heater Power (220-240V)	2000W
Voltage	230V / 50-60Hz
Dimensions
External (mm)	122w x 240d x 335h
Tank Mounting (mm)	Double clamp fitting accommodates tank max wall thickness 40mm
Tank Water Levels (mm)	Example : with overall tank depth 150mm / max water level 130mm / min 80mm

ne4-sb universal circulator
