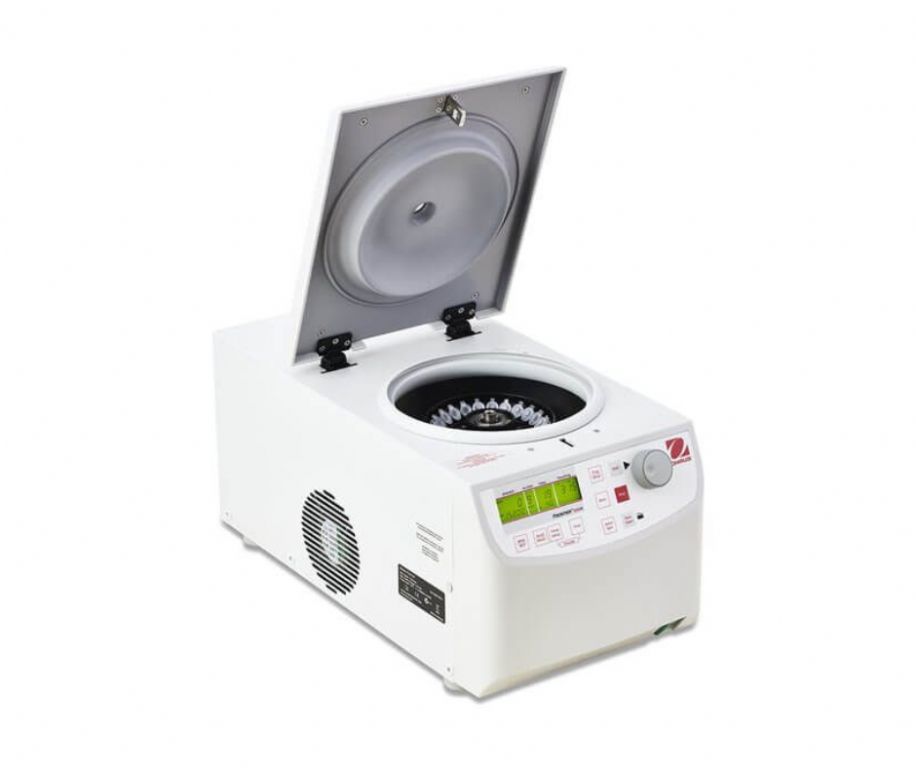

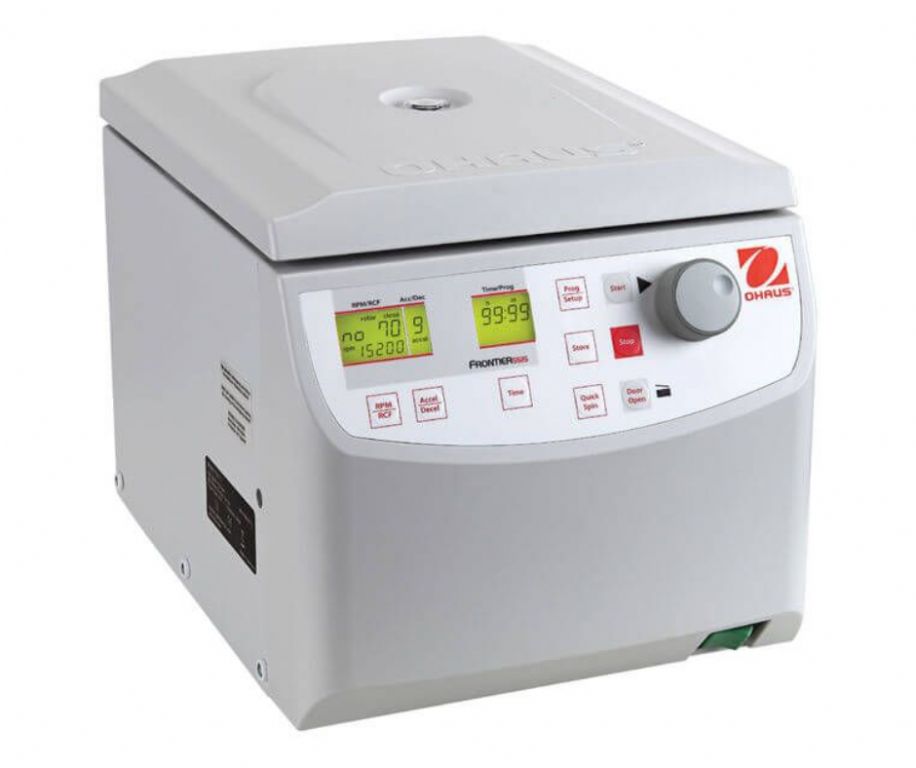

Ohaus Frontier™ 5000 Series Micro

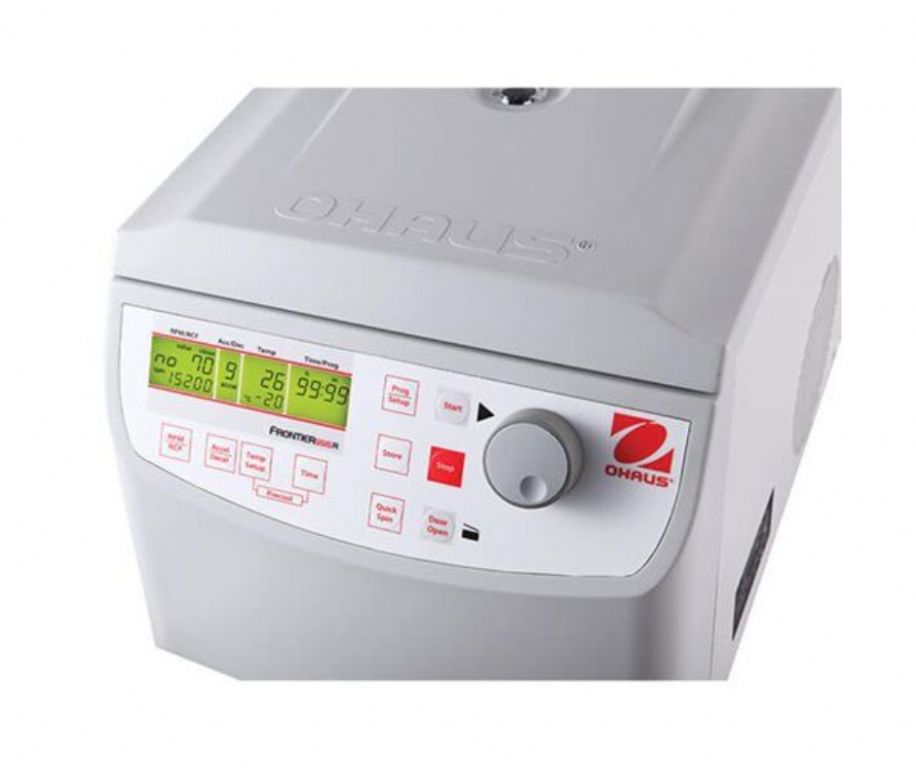

Frontier Micro centrifuges deliver high-speed operation for a range of essential lab applications, such as DNA/RNA preparation, ultrafiltration, and more. Biocontainment rotors enable research involving hazardous samples. Engineered with convenience of operation in mind, these centrifuges feature an intuitive interface, with all key parameters immediately accessible for observation and adjustment. The compact design saves valuable bench space in the lab.

Applications

Centrifugation

Display

LCD, Backlight, 2 lines

Operation

AC Power (Included)

Communication

N/A

Construction

Brushless quiet motor, small footprint

Design Features

High sample throughput,multi-safety control, personal program function

Product Code:	FC5515R 230V	FC5515 230V	FC5513+R01 230V	FC5513 230V
Speed Range	200 rpm ; 15,200 rpm	200 rpm ; 15,200 rpm	200 rpm ; 13,500 rpm	200 rpm ; 13,500 rpm
Maximum Relative Centrifuge Force (x g)	21,953 g	21,953 g	17,317 g	17,317 g
Maximum Capacity(Rotor)	44 x 1.5 / 2.0ml; 12 x 5 ml	44 x 1.5 / 2.0ml; 12 x 5 ml	24 x 1.5 / 2.0 ml	24 x 1.5 / 2.0 ml
Refrigeration Range	-4 °F ; 104 °F (-20 °C ; 40 °C)	n/a	not advertised	n/a
Program memories	99	99	99	99
Rotor In Package	Not applicable	Not applicable	Angle rotor 24 x 1.5 ml / 2.0 ml BIOSEALS	Not applicable
Acceleration Gear	10	10	10	10
Deceleration Gear	10	10	10	10
Dimensions	22.1 in x 11.5 in x 11.3 in (561 mm x 292 mm x 287 mm) (LxHxW)	15.5 in x 11.5 in x 11.3 in (393 mm x 292 mm x 287 mm) (LxHxW)	14 in x 9.3 in x 10.9 in (356 mm x 236 mm x 277 mm) (LxHxW)	14 in x 9.3 in x 10.9 in (356 mm x 236 mm x 277 mm) (LxHxW)
Display	LCD with backlight	LCD with backlight	LCD with backlight	LCD with backlight
Lid lock	Motor driven	Motor driven	Mechanical	Mechanical
Net Weight	77 lb (35 kg)	38 lb (17 kg)	28.9 lb (13.1 kg)	27.8 lb (12.6 kg)
Noise Level	≤57±2 dB(A)	≤60±2 dB(A)	≤60±2 dB(A)	≤60±2 dB(A)
Power	AC Power (Included)	AC Power (Included)	AC Power (Included)	AC Power (Included)
Power Consumption	500 W	270 W	170 W	170 W
Pre-cool time	From room temperature to 4? < 10min	Not applicable	Not applicable	Not applicable
Rotor Compatibility	Angle 24x1.5/2.0ml BIOSEALS V2; Angle 30 x 1.5 ml / 2.0 ml Sealable; Angle 44 x 1.5 / 2.0 ml ID V2; Angle 12 x 5 ml Sealable; Angle 4 x 8 place PCR Strips	Angle 24x1.5/2.0ml BIOSEALS V2; Angle 30 x 1.5 ml / 2.0 ml Sealable; Angle 44 x 1.5 / 2.0 ml ID V2; Hematocrit rotor, 24 × Capillaries; Angle 12 x 5 ml Sealable; Angle 4 x 8 place PCR Strips	Rotor Angle 24x1.5/2.0ml ID BIOSEALS V1; Hematocrit rotor, 24 × Capillaries	Rotor Angle 24x1.5/2.0ml ID BIOSEALS V1; Hematocrit rotor, 24 × Capillaries
Rotor Recognition Method	Manual	Manual	Manual	Manual
Running Time	Continous; 10 sec to 99 h 59 min 59 sec	Continous; 10 sec to 99 h 59 min 59 sec	Continous; Quickspin; 10 sec to 99 h 59 min 59 sec	Continous; Quickspin; 10 sec to 99 h 59 min 59 sec
Safety Certification	CE; FCC	CE; FCC	CE; FCC	CE; FCC
Working Environment	36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing)	36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing)	36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing)	36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing)
