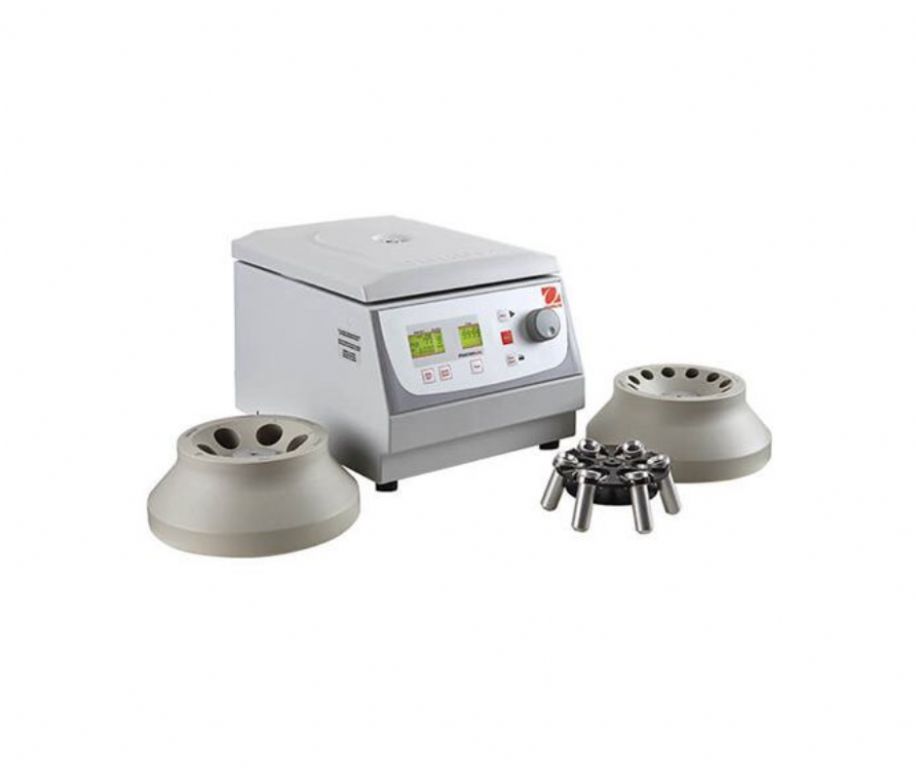

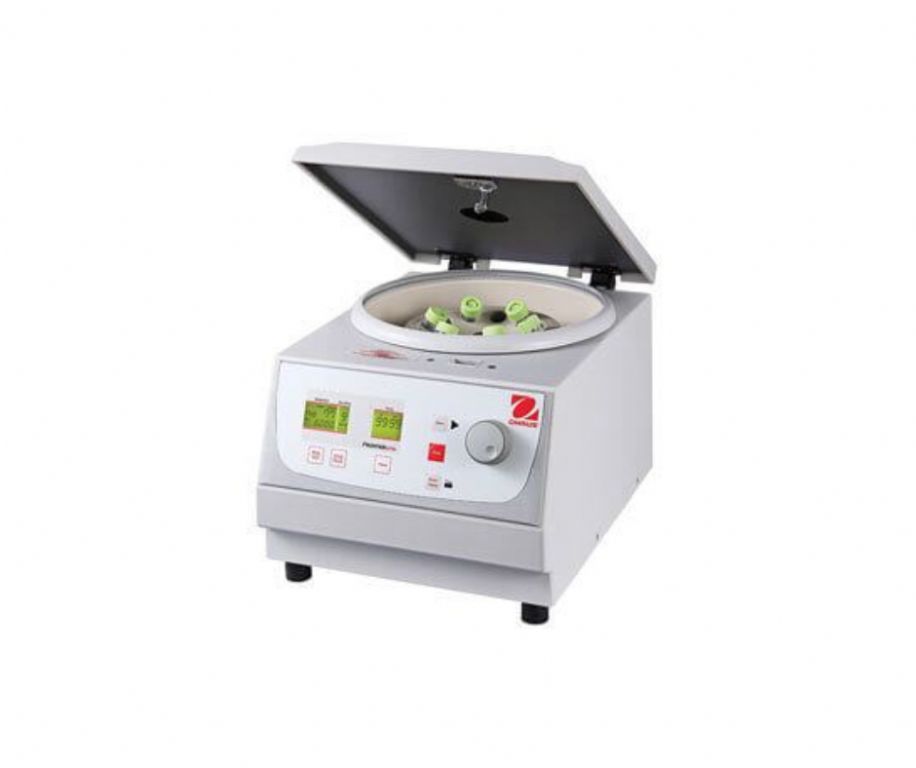

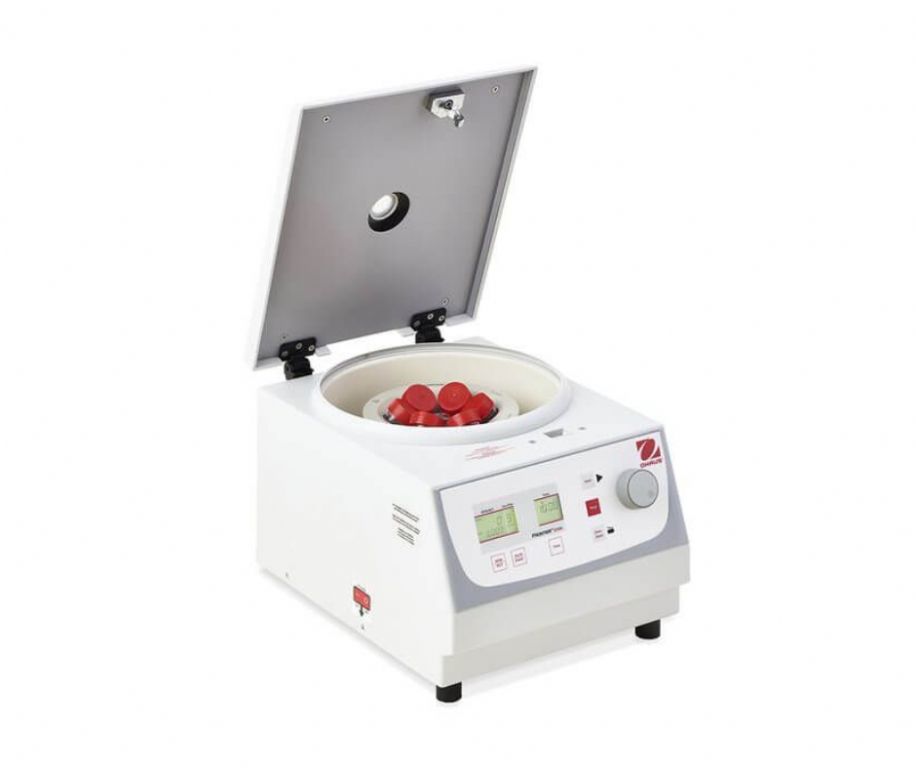

Ohaus Frontier™ 5000 Series Multi

Reliable and Compact Multi-Function Centrifuges Ideal for General Lab Applications

Frontier™ Multi Centrifuges are reliable compact low-speed general purpose centrifuges. The standard rotor options can process both round and conical bottom tubes (including common blood tubes), and can also be adapted easily with accessories to process smaller tubes. Designed with convenient operation in mind, the Multi Centrifuges feature an intuitive interface. The compact profile helps to save valuable bench space in labs.

Applications

Centrifugation

Display

LCD, Backlight, 2 lines

Operation

AC Power (Included)

Communication

N/A

Construction

Brushless quiet motor, small footprint

Design Features

Easy installation design

	FC5707+R05 100-230V	FC5706+R05 230V	FC5706 230V
Speed Range	200 rpm ; 6,800 rpm	200 rpm ; 6,000 rpm	200 rpm ; 6,000 rpm
Maximum Relative Centrifuge Force (x g)	4,445 g	4,427 g	4,427 g
Maximum Capacity(Rotor)	8 x 15 ml	6 x 50 ml	6 x 50 ml
Program memories	99	Not Advertised	Not Advertised
Rotor In Package	Angle rotor 8 x 15ml	Angle rotor 12 x 15ml	Not applicable
Acceleration Gear	10	10	10
Deceleration Gear	10	10	10
Dimensions	14 in x 9.3 in x 10.9 in (356 mm x 236 mm x 277 mm) (LxHxW)	15.4 in x 10.5 in x 11.5 in (392 mm x 266 mm x 291 mm) (LxHxW)	15.4 in x 10.5 in x 11.5 in (392 mm x 266 mm x 291 mm) (LxHxW)
Display	LCD with backlight	LCD with backlight	LCD with backlight
Lid lock	Mechanical	Motor driven	Motor driven
Net Weight	22.1 lb (10 kg)	23 lb (10.5 kg)	23 lb (10.5 kg)
Noise Level	≤60±2 dB(A)	≤60±2 dB(A)	≤60±2 dB(A)
Power	AC Power (Included)	AC Power (Included)	AC Power (Included)
Power Consumption	50 W	100 W	100 W
Pre-cool time	Not applicable	Not applicable	Not applicable
Rotor Compatibility	Angle 8X15ml	Swing Out Rotor 6 x 5 ml; Angle 12 x 15ml; Angle 6 x 50 ml	Swing Out Rotor 6 x 5 ml; Angle 12 x 15ml; Angle 6 x 50 ml
Rotor Recognition Method	Manual	Manual	Manual
Running Time	Continous; Quickspin; 10 sec to 99 h 59 min 59 sec	Continous; 10 sec to 99 h 59 min 59 sec	Continous; 10 sec to 99 h 59 min 59 sec
Safety Certification	CE; FCC	CE; FCC	CE; FCC
Working Environment	36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing)	36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing)	36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing)
