Top Loading Autoclaves

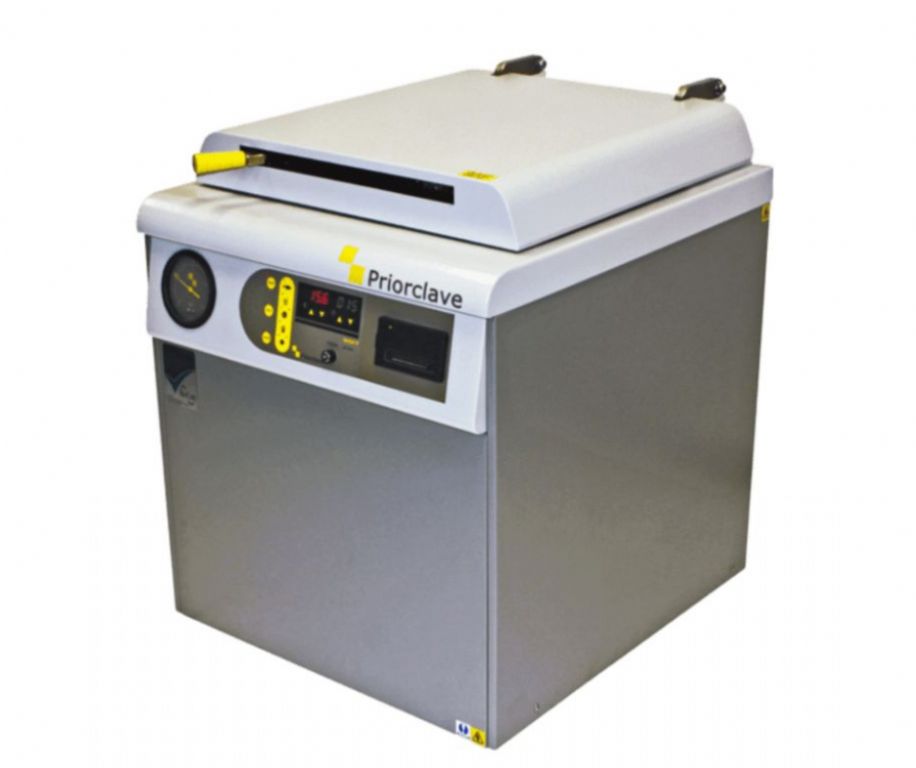

Priorclave 60L - 150L Autoclave Top-Loading

60L - 150L AUTOCLAVE
TOP-LOADING

Our #1 top-sellers worldwide! Why? Because vertical autoclaves can accommodate the tallest flasks, fermentors, and bioreactors at one-third the price of a comparable front-loading autoclave. Priorclave’s top loading autoclaves are among the most compact full-size units on the market today.  Compared to similar-sized medical-grade rectangular-vessel units, cylindrical autoclaves are easier to operate, less expensive to maintain, and more reliable over a longer working life.



The Base Range:

Priorclave’s Base range covers “the basics”: media preparation, waste loads, and sterilising loose instruments, open containers, and labware. Top-loading autoclaves are among our best-sellers worldwide, owing to their high efficiency and extremely small footprint (relative to chamber size). They are especially sought after by research, quality assurance, and teaching labs that must regularly process taller flasks, fermentors, or bioreactors. Base models include fully programmable cycle customisation, “media warming,” integrated cooling and freesteaming systems, and drain protection. Easy maintenance and light resource consumption help ensure a low lifetime cost of ownership.



The Smart Range:

Priorclave’s Smart autoclaves are intended for industrial, research, and production labs and facilities with greater or more diverse needs. They can adeptly handle standard tasks (e.g., media prep, waste loads, labware) but can also produce drier loads and more reliably handle complex loads that tend to trap air. Ideal for mixed waste loads, biological waste or pathogen-heavy materials, cloth and textile sterilisation, soil and substrate preparation, wrapped instruments, and porous loads. These smaller toploading sterilisers are among our best-sellers worldwide, owing to their high efficiency and extremely small footprint (relative to chamber size). Features fully customisable cycles (with expanded memory), pre-cycle and post-cycle vacuum, integrated cooling and freesteaming, and air intake filtration.


V60-BASE / V60-SMART
EV100-BASE / EV100-SMART  EV150-BASE / EV150-SMART
Heat Input Elements in Chamber Electrical (Direct Steam option also available) Electrical (Direct Steam option also available)
Chamber Volume 60 litres 100 Liters 150 Liters
Operating Range Up to 138°C, 2.4 Bar (280°F 34 psi) Up to 138°C, 2.4 Bar (280°F 34 psi) Up to 138°C, 2.4 Bar (280°F 34 psi)
Loading Format Top Loading Top Loading Top Loading
Loading Height 850mm (33.46”) 755mm (29.72” ) 935mm (33.9” )
Heating Power 3kW - 13A single phase 7kW - 30A single-phase 10.5kW - 15A three-phase 7kW - 30A single-phase 10.5kW - 15A three-phase
Chamber Dimensions diameter x depth 350 x 625mm (13.77” x 24.60”) 500 x 500mm (19.68” x 19.68”) 500 x 720mm (19.5” x 28.4”)
Bottom Shelf Dimensions w x d n/a n/a n/a
Top Shelf Dimensions w x d n/a n/a n/a
Outside Dimensions w x d x h 492 x 625 x 900mm (27.24” x 24.60” x 35.43”)492 x 795 x 900mm (27.24” x 31.29” x 35.43”) 660 x 840 x 840mm (25.98” x 33.07” x 33.07”) 660 x 840 x 1020mm (26” x 33.1” x 40.2”)
Weight (unloaded) 85kg (187.39 lbs) / 90kg (198.41lbs) 157kg (346.12 lbs) 175kg (363.76 lbs)
Minimum Installation w x d x h 670 x 1395mm (26.37” x 54.92”) not including door swing 980 x 1400mm (38.58” x 55.11”) (including Door Swing) / 960 x 840 x 840mm (37.79” x 33.07” x 33.07 ”) 980 x 1600mm (38.58” x 62.99”) (including Door swing)
Door Swing 560mm (20.47”) / 520mm (20.47”) 560mm (22.1”) 560mm (22.1”)



  • priorclave top-loading autoclave base 60l
  • priorclave top-loading autoclave base 100-200l
  • priorclave top-loading autoclave smart 60l
  • priorclave top-loading autoclave smart 100-200l
