Water Systems

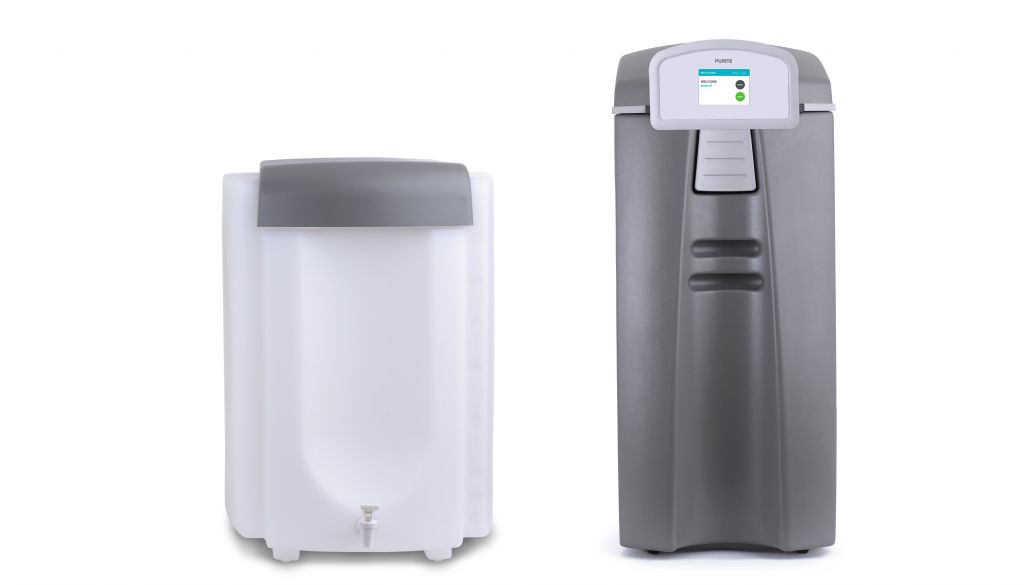

Purite Analyst Water Purification Unit

For clinical laboratory water
Type II / Deionised (DI) water
The Purite Analyst provides a consistent supply of purified water to a quality better than 1MΩ.cm.

It is easy to use and ideal for applications such as glassware rinsing, buffers and stains, reagent make-up, and media preparation.

  • Guaranteed > 1MΩ.cm water quality
  • Optional remote colour touchscreen display
  • ECO option with up to 50% water recovery
  • Wi-Fi option

Purite Analyst | Overview

The Purite Analyst is a compact water purification unit, using integrated carbon pre-treatment, reverse osmosis and deionisation technologies to produce a flow of water purified to at least 1MΩ.cm.

An internal 20l storage tank is standard, with options including external tanks, wi-fi connectivity, remote monitoring and control panels with colour touchscreen, plus ECO versions that allow up to 50% of the waste water stream to be recovered.

Purite Analyst | Features

  • Guaranteed > 1MΩ.cm water quality

  • Remote display (optional)

  • ECO option now available offering 50% recovery which equates to a significant reduction in water usage and waste

  • WiFi enabled for remote monitoring and operation.



Purite Analyst | Unit Specification

Unit specification 160 320
Width (mm) 440 440
Depth (mm) 560 560
Height (mm) 750 750
Maximum Shipping Weight (kg)* 28 33
Maximum Working Weight (kg)* 43 52

Installation requirements 160 320
Power Single Phase, 110-230V, +/- 10%, 50/60 Hz Single Phase, 110-230V, +/- 10%, 50/60 Hz
Feed Water Potable Potable
Maximum TDS (ppm) 1000 1000
Minimum inlet pressure – psi (bar) 30 (2.1) 30 (2.1)
Maximum inlet pressure – psi (bar) 90 (6.2) 90 (6.2)
Feed water temperature 1-35oC 1-35oC
Product outputs @ 10ºC (l/hr)* 14.4 30
Product outputs @ 25ºC (l/hr)* 24 48



*Outputs based on a feed water pressure of 4 bar



  • premier scientific purite analyst data sheet
