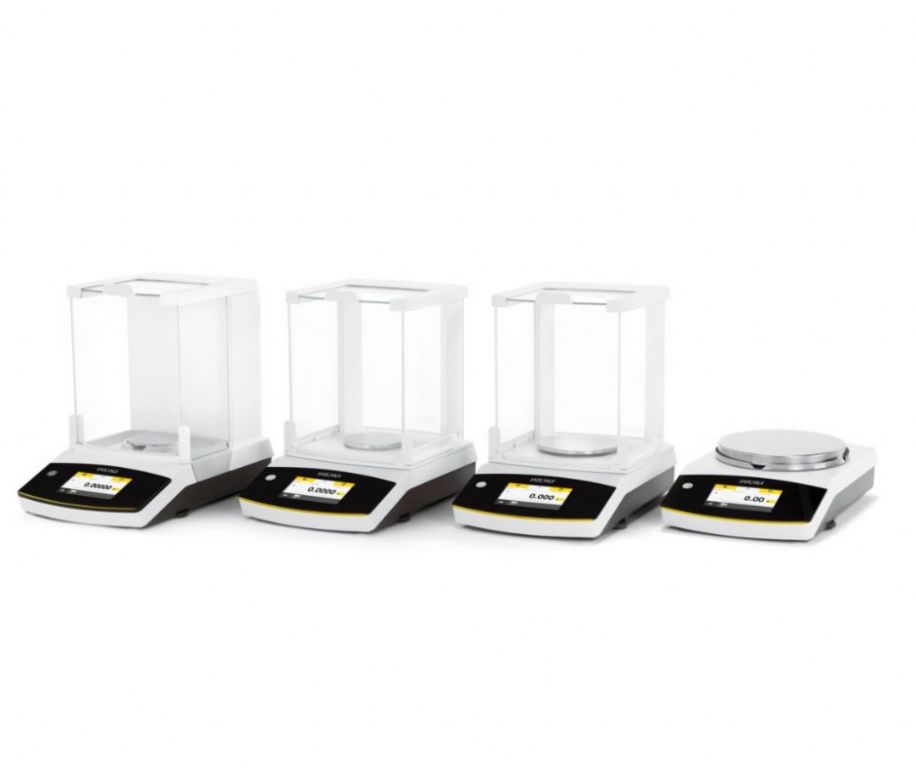

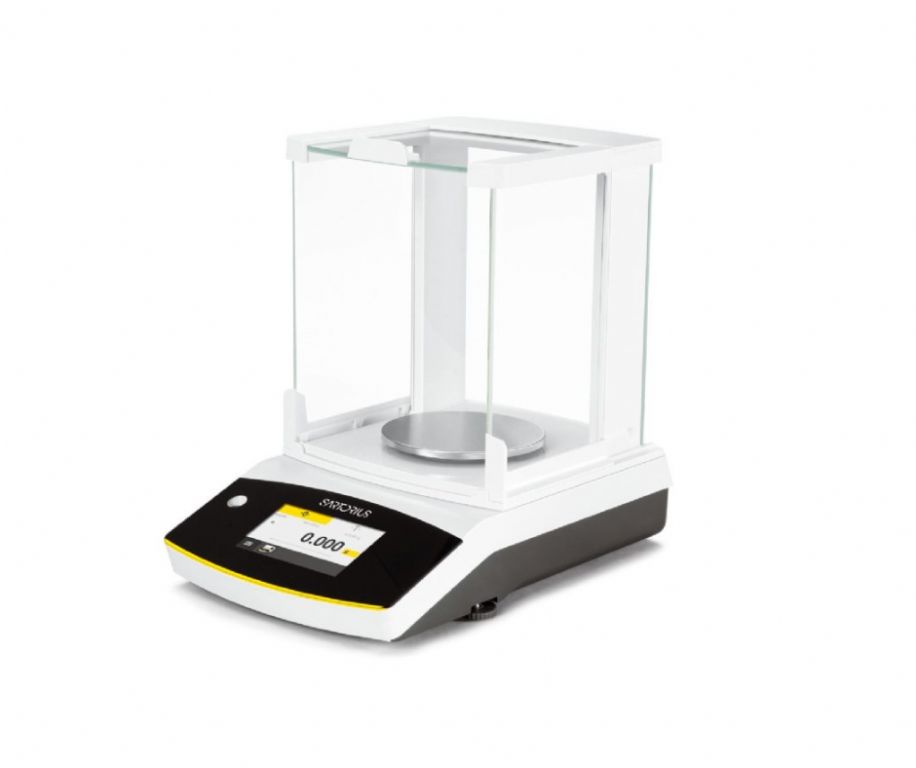

Sartorius Quintix®
Quintix® Analytical Balances are designed to reliably produce a variety of high-precision weight measurements while improving laboratory workflows. The balance?sets benchmarks in every aspect for standard lab balances. Several features make your workflow more efficient, such as fully automatic internal adjustment, PC-direct data transfer, ergonomic style and the touchscreen user interface with built-in application programs.
Top Features of Quintix® Analytical Balances
Intuitive operation with SmartTouch interface and color touch screen
One-Touch ergonomic draft shield protects samples and minimizes ambient effects
Highest accuracy and convenience ensured by isoCAL fully automatic internal adjustment feature
Popular Applications for Quintix® Analytical Balances
Routine weight measurement and secure data transfer between laboratory devices
Calibration
Calibration History: Yes
Compliance Information
GLP/GMP Compliant Printout: Yes
Legal Verification: Factory verification (EU)
Regulatory Requirements: GLP, GMP
Connections (Data)
Data Interface: Mini USB
Data Transfer: Direct transfer to Windows® applications, Programmable interval for data output, Data transfer protocols SBI - table format - text format
Connections (Physical)
Connectivity: PC-direct data transfer, Plug & Play to Sartorius printer
Dimensions
Dimensions WxDxH: 218 × 360 × 320 mm
Weighing Chamber Height: 209 mm
Weighing Pan Diameter: 120 mm
Features
Adjustment: Internal automatic (isoCAL)
Anti-Theft Locking Device: Kensington Lock, lockdown capability for cable or chain
Display: Colored Touchscreen
Housing Protection: Acetone cleanable housing, Glass parts of the draft shield are coated to reduce electrostatic influences, In-use cover, Dust cover for balances with draft shield
Languages: English, French, German, Hungarian, Italian, Polish, Portuguese, Russian, Spanish, Turkish, Chinese, Japanese, Korean
Leveling: Manual
Password Protection: No
Repeatability: 1 mg
Scale Interval: 1 mg
Tamper Protection: Supervisor lock
Typical Stabilization Time: 1 s
Underfloor Weighing: Yes
General Specifications
Chemical Resistance: Yes
Draft Shield: Manual
Linearity: 2 mg
Minimal Sample Weight according to USP and PhEur (optimal): N/A
Weighing Units: g, ct, mom, kg, lb, oz, ozt, tlh, tls, tlt, GN, dwt, mg, parts | lb, tlc, Kt, tol, bat, MS, N
