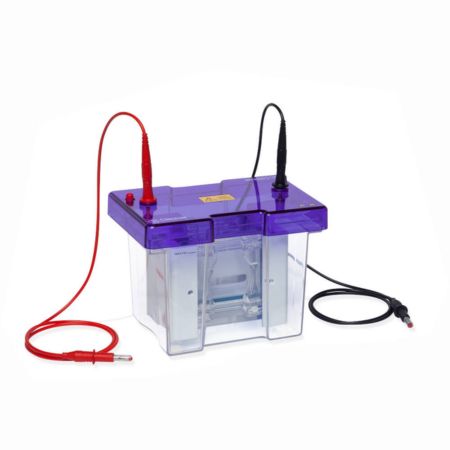

Thistle Scientific - Cleaver Scientific - omniPAGE Mini Vertical Protein Electrophoresis System

Cleaver Scientific Mini Vertical systems are predominantly used for protein electrophoresis.

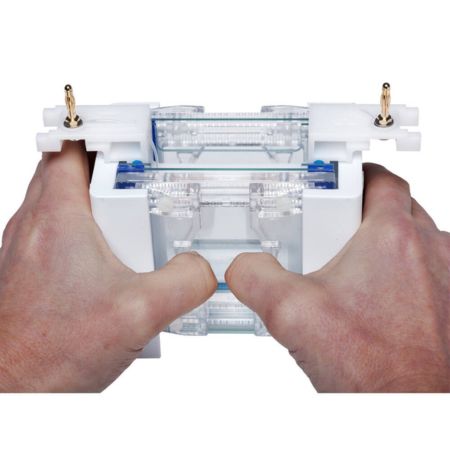

By combining both functionality and ease of use, the omniPAGE systems set the bench mark for simple, versatile vertical mini gel electrophoresis. Each omniPAGE electrophoresis system can accommodate up to 4 handcast gels (additional plates required) or 2 commercial precast gels to provide complete flexibility for individual research needs, while unique sliding clamp technology within the PAGE insert facilitates fast, intuitive leak-free casting.

With a trouble-free set up and consistent performance, the omniPAGE Mini Vertical systems are perfect for today’s laboratories, where the ability to generate reproducible results quickly is essential.

SKU	CVS10D	CVS10DSYS	CVS10DSYS-CU	CVS10PRE
Unit Dimensions (cm)	19 x 13 x 15	19 x 13 x 15	19 x 13 x 15	19 x 13 x 15
Weight (Kg)	1.8	1.8	1.8	1.8
Capacity	1 - 4 Gels	1 - 4 Gels	1 - 4 Gels	1 - 4 Gels
Maximum Sample Capacity	80	80	80	80
Base Buffer Volume	250	250	250	250
Typical Running Conditions	1-2 hours at 90-225V	1-2 hours at 90-225V	1-2 hours at 90-225V	1-2 hours at 90-225V
Gel Dimensions	8 x 8.5	8 x 8.5	8 x 8.5	8 x 8.5
Maximum Buffer Volume (ml)	1200	1200	1200	1200
Includes Casting Base	FALSE	TRUE	TRUE	FALSE
Blotting Insert (optional)	VS10BI	VS10BI	VS10BI	VS10BI
2D Insert (optional)	VS10DCI	VS10DCI	VS10DCI	VS10DCI
Includes Additional Caster	FALSE	FALSE	TRUE	FALSE
Plate Dimensions	10 x 10 x 0.2	10 x 10 x 0.2	10 x 10 x 0.2	10 x 10 x 0.2

omnipage mini vertical protein electrophoresis system(1)
