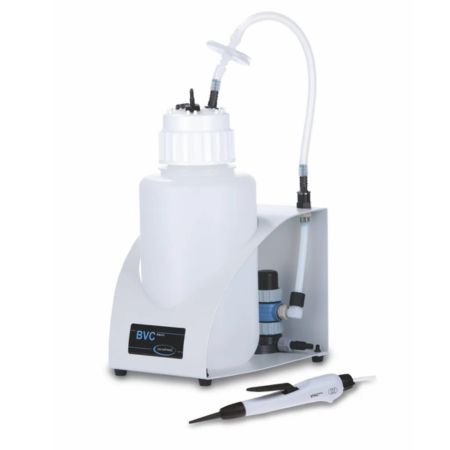

BVC basicFluid aspiration system

mechanical vacuum regulator and integrated check valve to provide optimum working vacuum and minimize the vapor load on the vacuum network
stable base and electricity-free operation for convenience
autoclavable collection bottle designed to reduce aerosol and foam formation; autoclavable quick-couplings available as accessory
aspiration hand set VacuuHandControl (VHCpro) with flow-through suction tube - no contamination of handle by aspirated media
hydrophobic 0.2 µm sterilizable filter - contamination risks for the vacuum pumping system are greatly reduced; autoclavable as complete unit together with the collection bottle

Part No. 20727000

BVC basic GFluid aspiration system

mechanical vacuum regulator and integrated check valve to provide optimum working vacuum and minimize the vapor load on the vacuum network
stable base and electricity-free operation for convenience
autoclavable collection bottle designed to reduce aerosol and foam formation; autoclavable quick-couplings available as accessory
aspiration hand set VacuuHandControl (VHCpro) with flow-through suction tube - no contamination of handle by aspirated media
hydrophobic 0.2 µm sterilizable filter - contamination risks for the vacuum pumping system are greatly reduced; autoclavable as complete unit together with the collection bottle

Part No.20727100

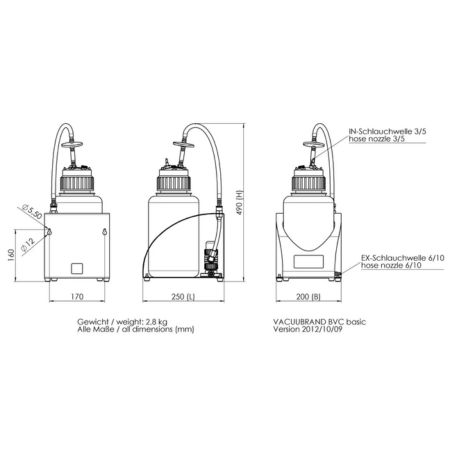

Technical data and graphs
	BVC basicFluid aspiration system	BVC basic GFluid aspiration system
Vacuum controller	Mechanical vacuum controller	Mechanical vacuum controller
Control range	100 - 500 mbar	100 - 500 mbar
Collection bottle	4l Polypropylene	2l Glass
Max. back pressure (abs.)	1.1 bar	1.1 bar
Inlet connection	Suction controller	Suction controller
Outlet connection	Hose nozzle DN 6-10 mm	Hose nozzle DN 6-10 mm
Protection class IEC 60529	IP 54	IP 54
Weight	2.8 kg	3.2 kg
NRTL certification	No	No
Items supplied	Complete fluid aspiration system for existing vacuum source, with automatic vacuum control, hose nozzle DN 6/10 mm for connection to a vacuum supply, aspiration hand set VacuuHandControl VHCpro, collection bottle, protection filter and manual.	Complete fluid aspiration system for existing vacuum source, with automatic vacuum controll, hose nozzle DN 6/10 mm for connection to a vacuum supply, aspiration hand set VacuuHandControl VHC, collection bottle 2l made of glass, protection filter and manual.
