Energy Consumption

0.2kWh @ 37°C
0.21kWh @ 60°C - lid fitted

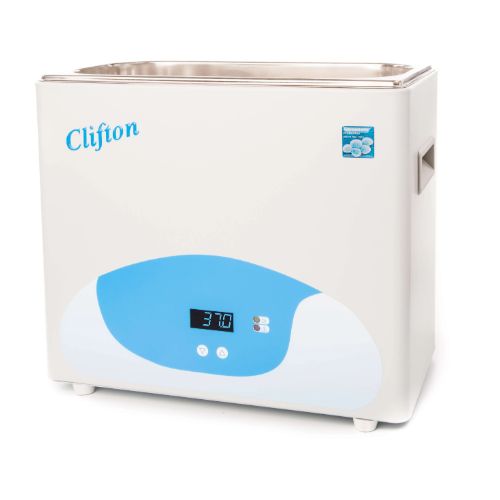

(Based on NE2-4D)
The lower the figure, the less energy used. Information supplied for size and range comparison, guidance only and consumption measured at set point. Please remember that the energy consumption may vary due to factors such as location, ventilation, ambient temperatures and loading.

Controls

Featuring bold LED display of measured temperatures in real-time, increments of 0.1°C, using precision PID temperature control. Settings retained even after turning the unit off. Easy to use splash proof controls, touch keypads for setting temperature values with indicators for heating and over temperature alarm. Features auto setting over temperature alarm protecting samples at set temperature. Every unit undergoes a factory calibration at two temperatures for validation.

Heating and Sensors

Heaters and temperature sensor are concealed under the tank providing an easy to clean working area. The heating footprint covers the underside of the tank and with a low mass provides rapid energy transfer, resulting in quicker heat up times and a reduction in energy consumption and improved temperature uniformity.

Heating Information

Above 60°C it is recommended that to achieve optimum performance the bath should be covered with a lid or layer of polypropylene spheres - see accessories. Covering the bath with a lid reduces energy consumption and running costs. This range of baths will operate at 100°C however are not designed for continuous boiling, the NE1B boiling bath range is recommended.

Nickel-Electro Ltd belongs to the Made In Britain association. The symbol on the company’s products gives customers an assurance of quality.
